Fig. 3

Fig. 3 Refer to the following caption and surrounding text.

Download original image

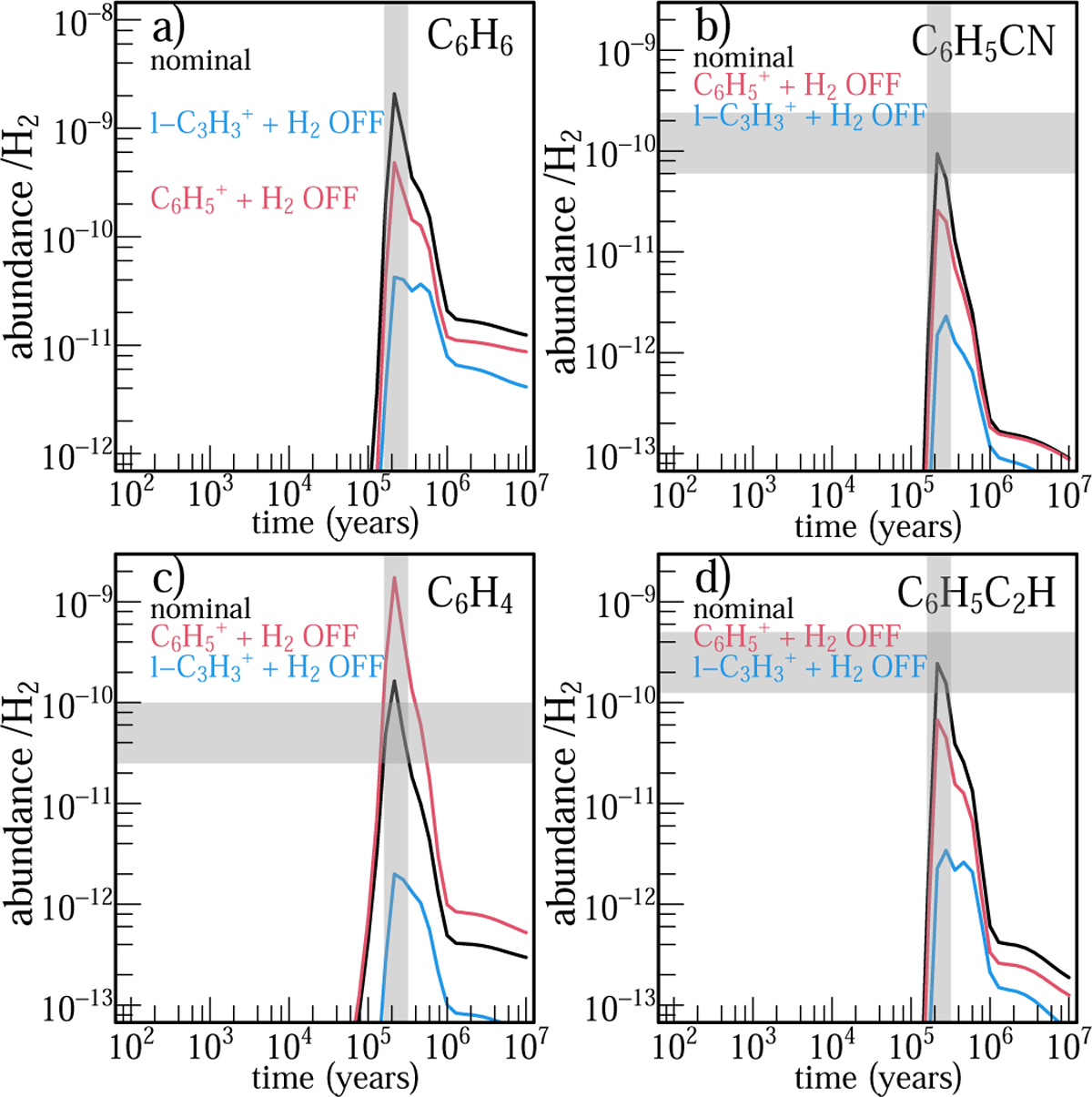

Gas-grain astrochemical model results for l-C3H3+, CH3CCH, C6H4, C6H6, C6H5CN, and C6H5C2H in dark clouds as a function of cloud age. Solid black line: standard network results. Solid red line: nominal network excluding the gas-phase C6H5+ + H2 reaction. Solid blue line: nominal network excluding the gas-phase l-C3H3+ + H2 reaction. Horizontal shaded rectangle: observed abundances in TMC-1 with an arbitrary error of ±2: l-C3H3+ Silva et al. (2023), CH3CCH (Askne et al. 1983; Irvine et al. 1981; Markwick et al. 2002; Turner et al. 1999), C6H4 Cernicharo et al. (2021b), C6H5CN McGuire et al. (2018), and C6H5C2H (Loru et al. 2023).
