Fig. 4

Download original image

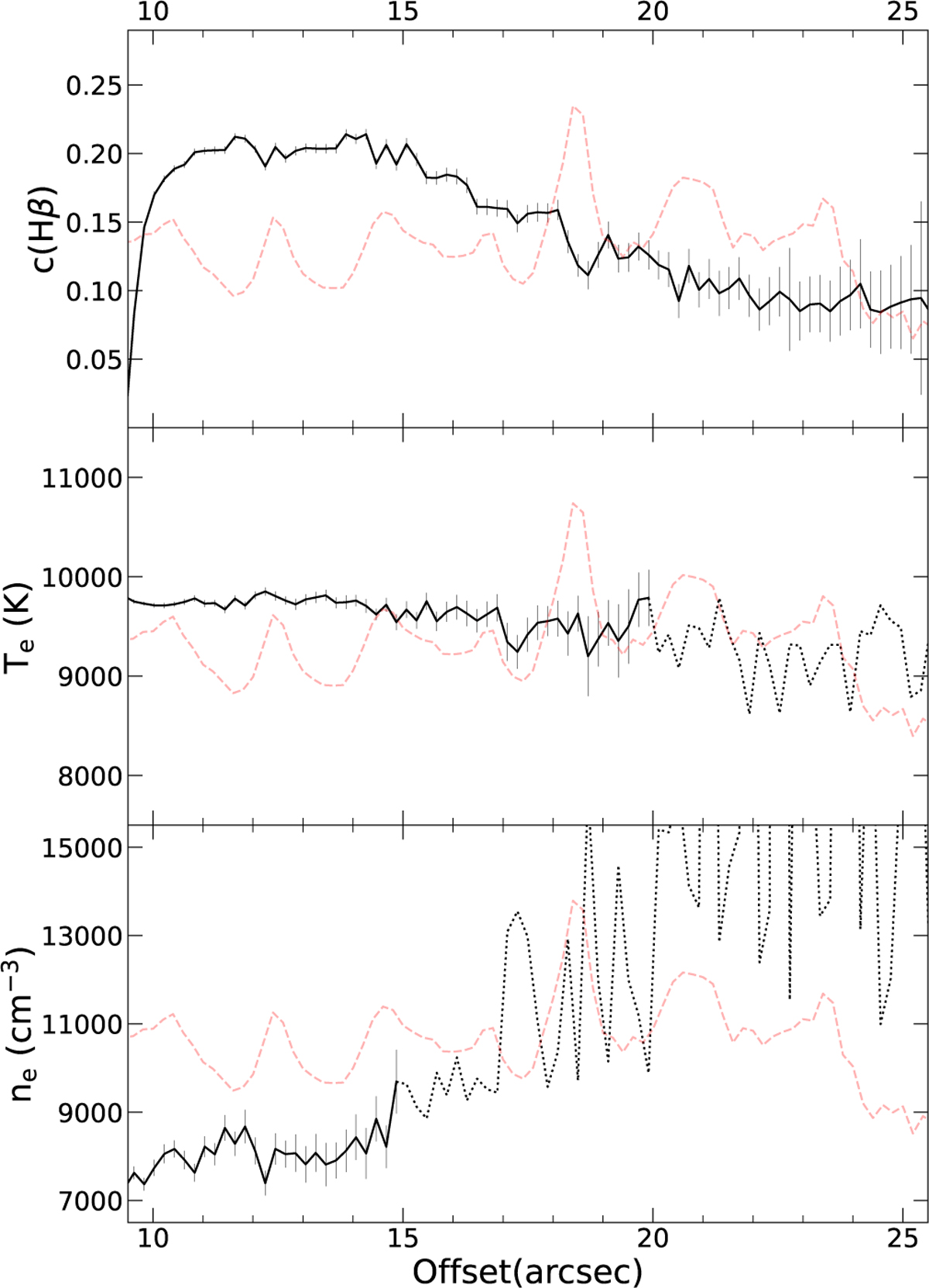

Radial profiles of the logarithmic extinction coefficient c(Hβ) (top), electron temperature Te (middle), and electronic density ne (bottom) in the halo of IC 418 (black lines) overlaid by the radial profile of the [O III] λ5007 emission line presented in Fig. 3 (dashed red line). The radial range where the estimates of these physical parameters are found to be reliable is shown with a solid black line and its respective error bars, whereas regions where they become notably uncertain are indicated by thin, dashed black lines.
