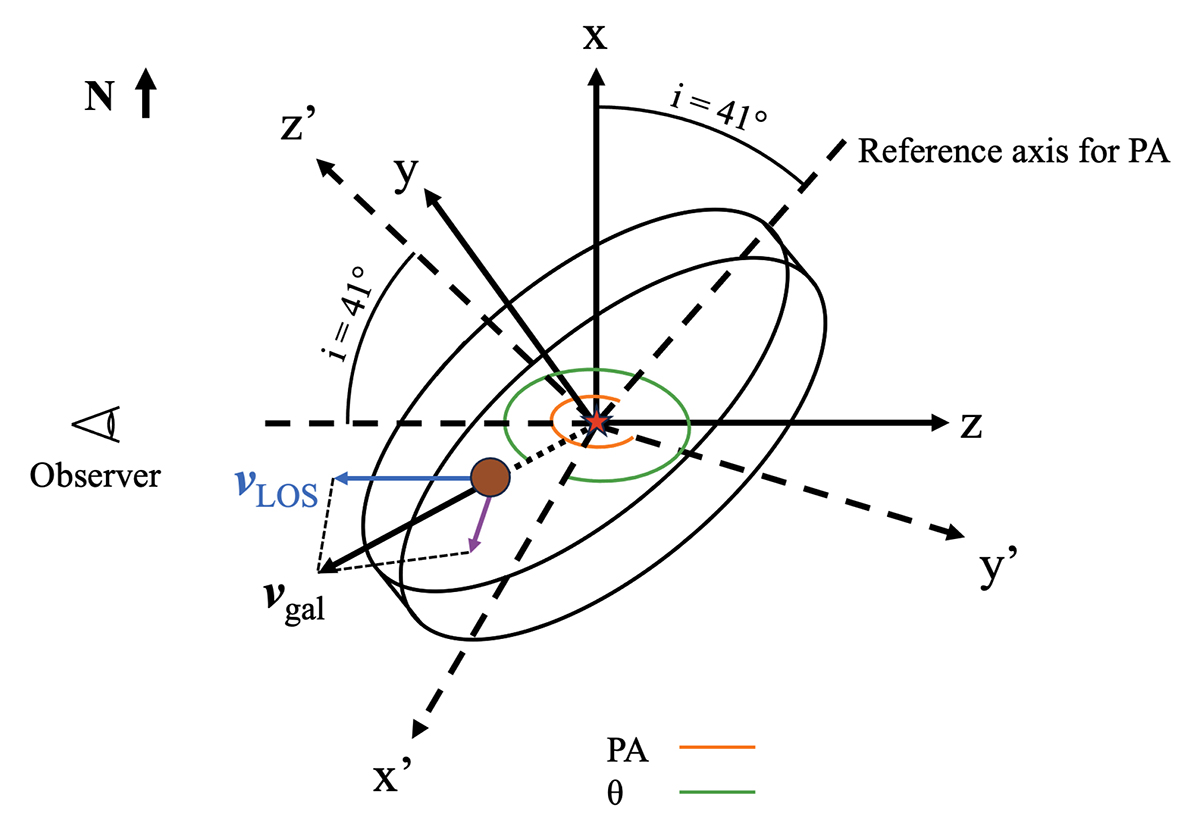

Fig. 14.

Download original image
Projection of velocity (vgal) from NGC 1068 coordinates (primed) to sky coordinates (unprimed). The primed frame results from a i = 41° inclination rotation along the line of sight (from the negative z-axis to the z′-axis) and a PA = 289° rotation around z′-axis. The x′-axis aligns with the minor axis of the CND, matching the reference azimuthal direction (θ′0), with the 90° difference between x′ and y′-axes corresponding to the difference between PA and the θ′0 direction. The primed system follows a rightward primary axis convention, while the sky frame follows a northward reference. The PA reference axis is the x-axis after inclination rotation. The brown ball marks the molecular gas region, with outflow velocity vgal assumed to lie in the CND plane, directed radially from the AGN (red star). It decomposes as voutcos(θ) along x′-axis and voutsin(θ) along y′-axis, where θ is measured from x′-axis. Using Eq. (8), vgal is projected to sky velocity vsky, decomposed into the observed radial velocity vLOS and a transverse component (purple arrow), which further splits into vx and vy.
