Fig. 4.


Download original image

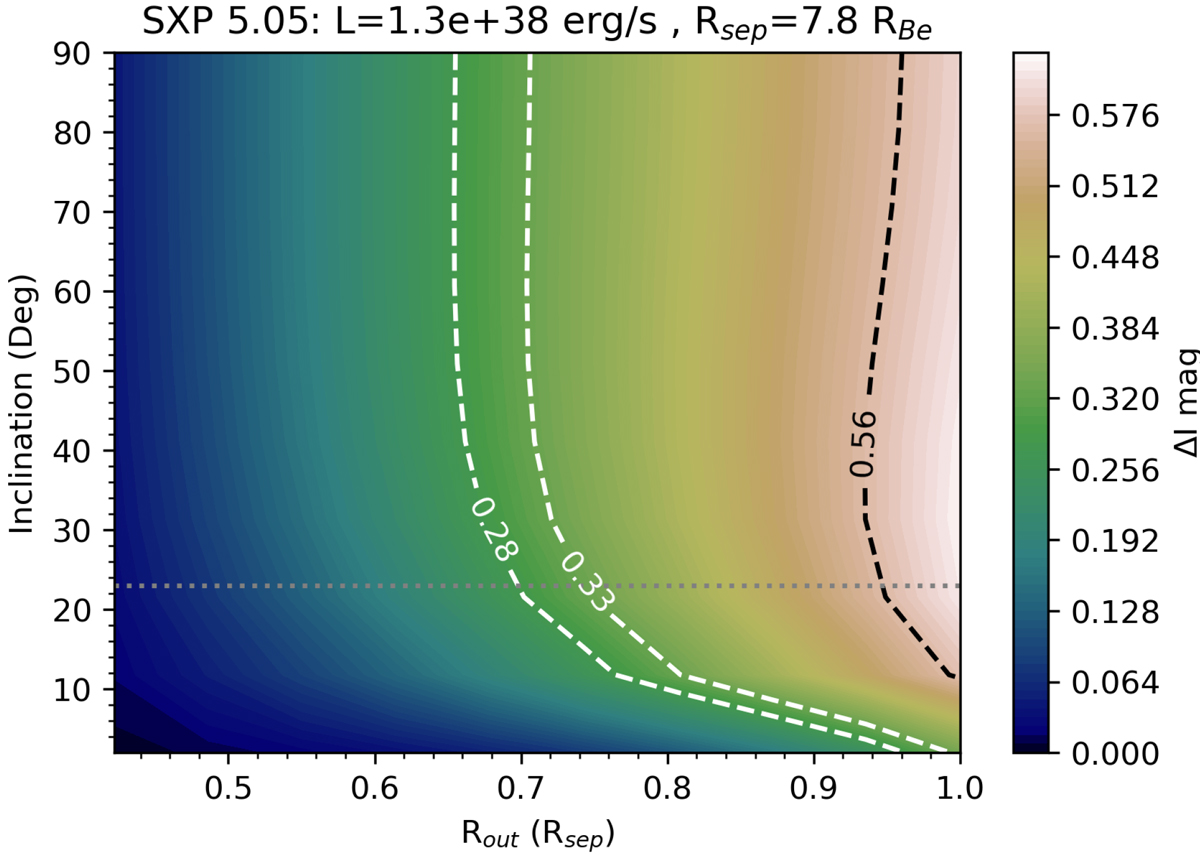

Heat map of simulated maximum (disk is seen face on by observer) flare intensity (ΔI) for SXP 5.05 for inner disk radius RBe = 3R. White contours indicate the observed ΔI (Table 2), while the black contour was computed assuming the disk is seen at some moderate inclination (i.e., 60°). Minimum Rout is the Be disk size and maximum should be ∼0.8Rsep, which is roughly the Roche-lobe radius.
