Fig. 3


Download original image

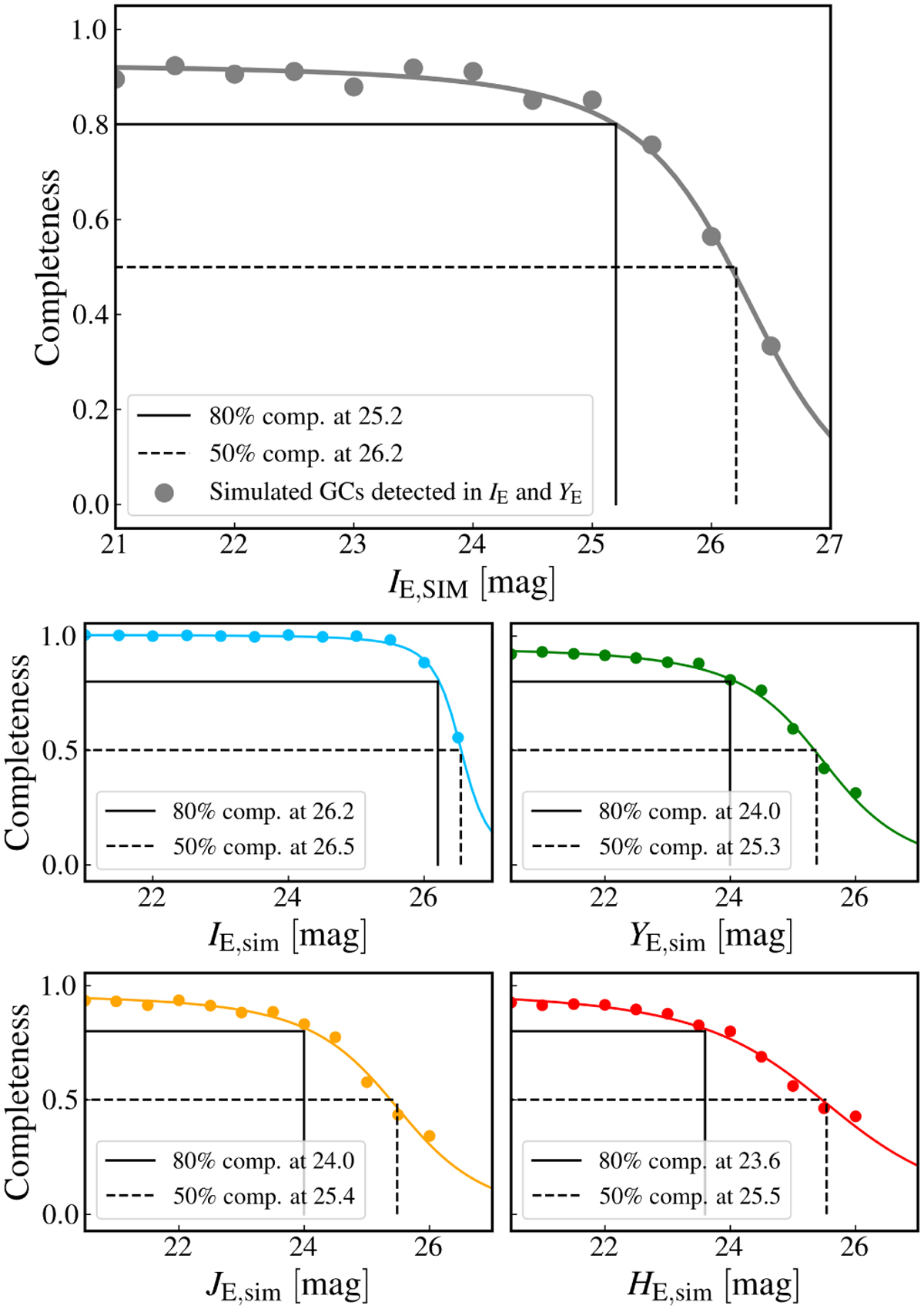

Completeness expected in the ERO-Fornax catalogue data based on artificial GCs. Top panel: combined completeness for sources detected in both IE and YE as a function of simulated input IE magnitude. Bottom: detection completeness in the four individual filters as a function of the respective input magnitude. For old GCs (older than 7 Gyr) with sub-solar metallicities (Z < 0.02), the GCLF turn-over magnitude is expected to be at IE = 23.5.
