Fig. 3


Download original image

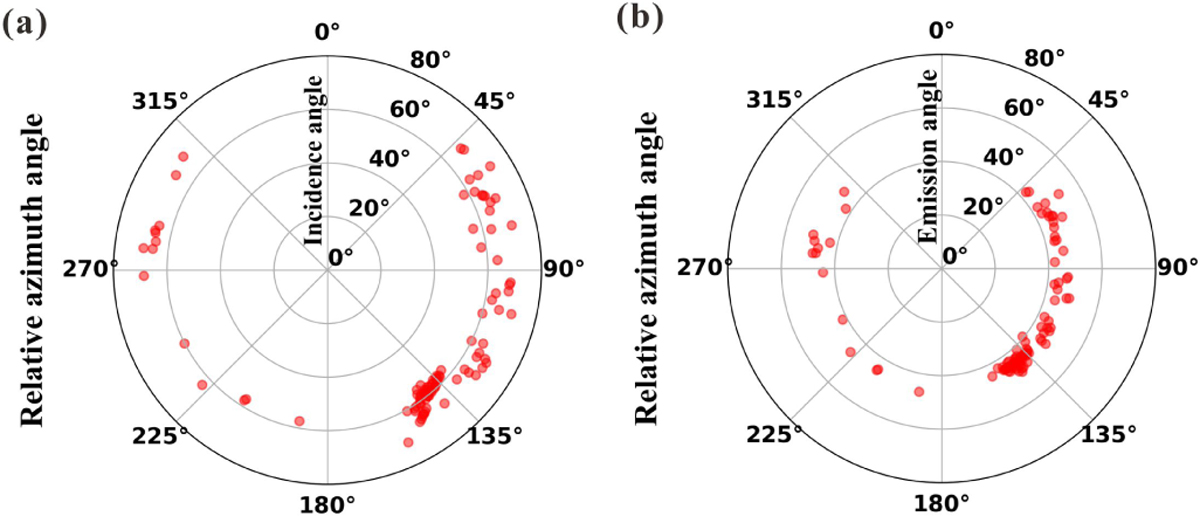

Relative azimuth angle of the selected CMOS data. (a) and (b) show the relative azimuth angle along with incidence and emission angles, respectively. The angle values presented were extracted from the central pixel of each CMOS image. The relative azimuth angle was defined as the azimuth angle of the rover relative to the Sun.
