Fig. 8.


Download original image

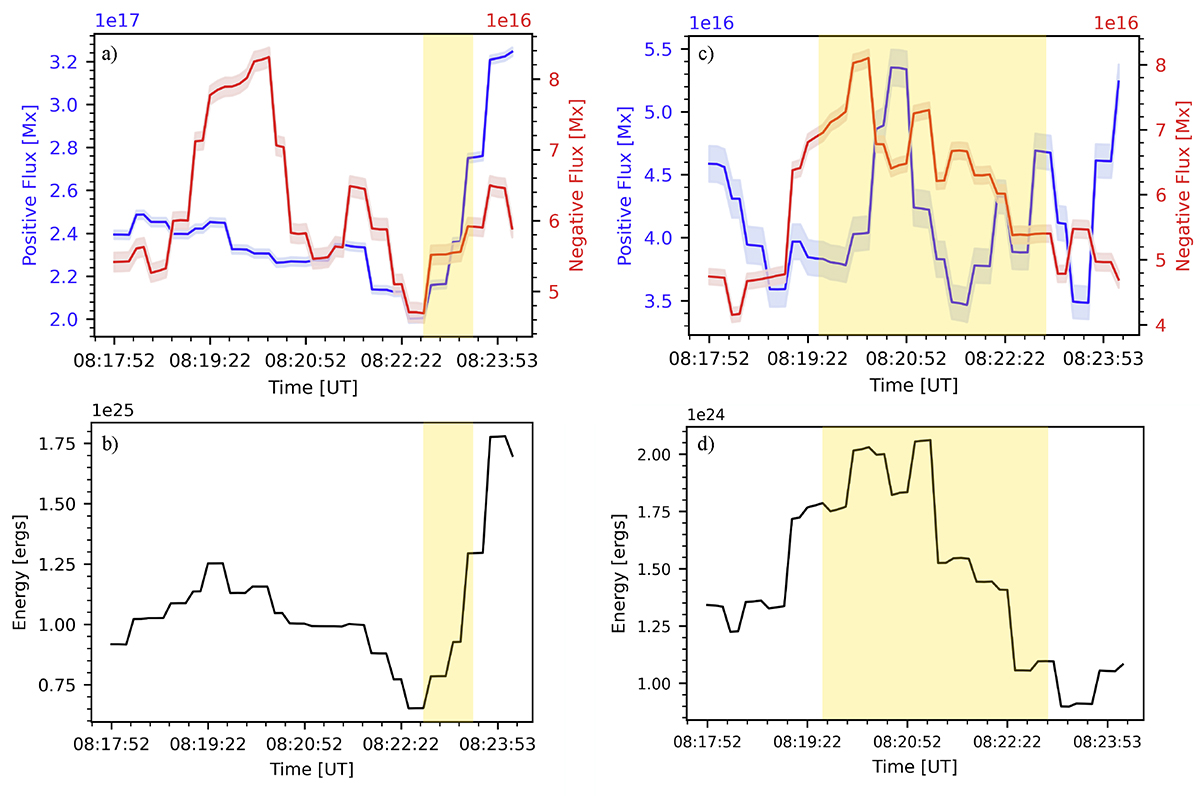

Evolution of positive and negative magnetic flux and magnetic energy for the two QSEBs of Fig. 7. The error bands in positive and negative fluxes are shown as thin-shaded regions along the curves. Panels (a) and (b) are for QSEB-A, which is located at the outer spine footpoint. Panels (c) and (d) are for QSEB-B, which is located in a dipole configuration. The yellow-shaded regions highlight the duration of the two QSEB events.
