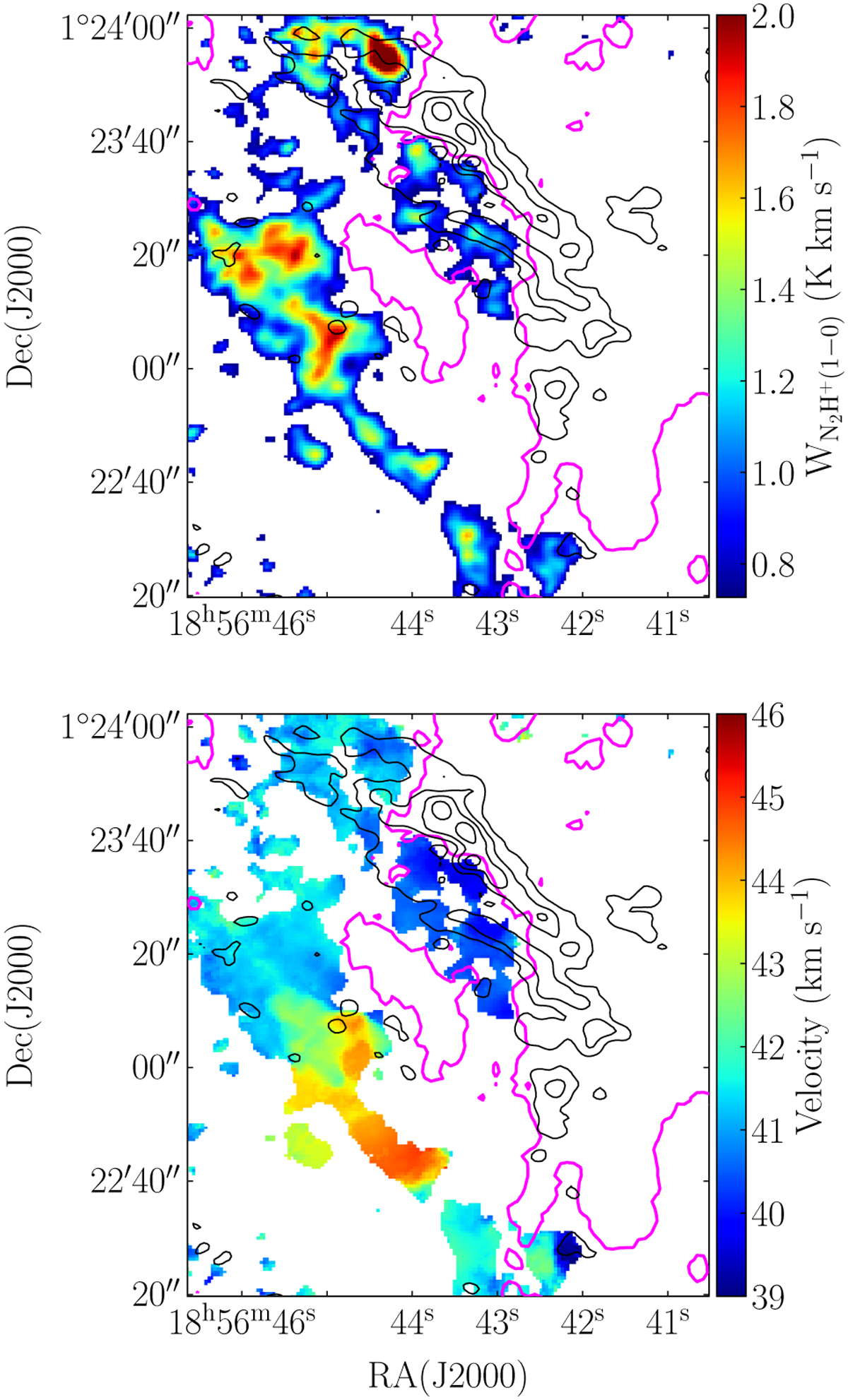

Integrated intensity map (top panel) and velocity field map (bottom panel) of the N2H+(1–0) emission towards the shock front in G034.77. In both panels, the pixels below 3×Arms have been masked (Arms= 0.23 K km s−1). The ΣH2=0.09 g cm2${\Sigma _{{{\rm{H}}_2}}} = 0.09{\rm{g}}{\rm{c}}{{\rm{m}}^{ - 2}}$ (visual extinction 20 mag) magenta contour highlights the shape of the cloud (Kainulainen & Tan 2013). The SiO(2–1) emission contours obtained by Cosentino et al. (2019) is shown as black contours from 3σ (σ=0.016 Jy beam−1 km s−1) by steps of 3σ.
