Fig. C.3

Download original image

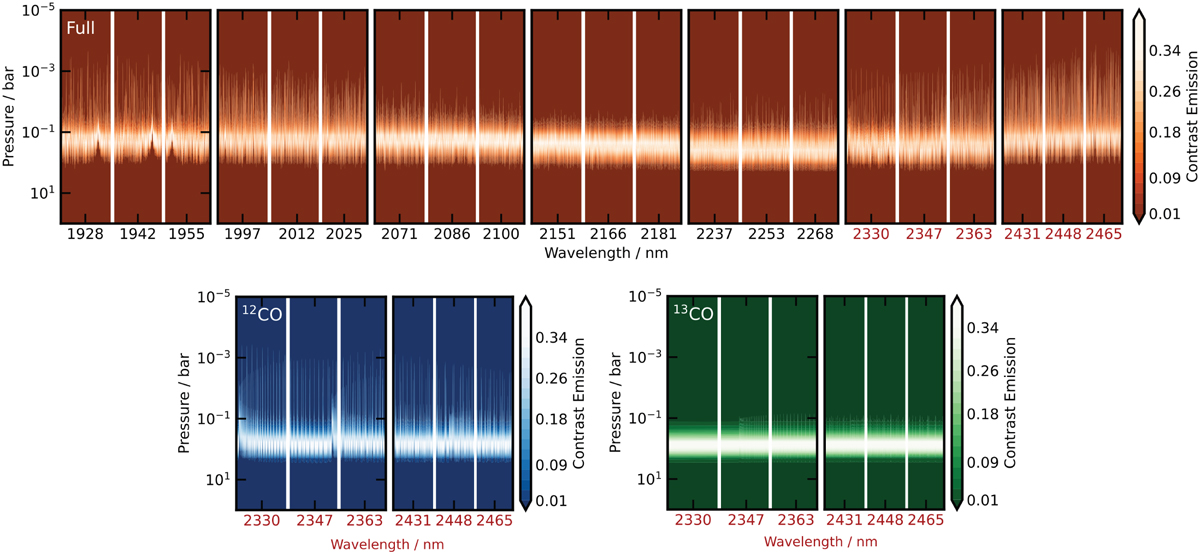

Contribution function of the full best-fit model of GQ Lup B (top panel). The individual contribution functions of 12CO and 13CO are displayed for the last two spectral orders on the bottom panels.
