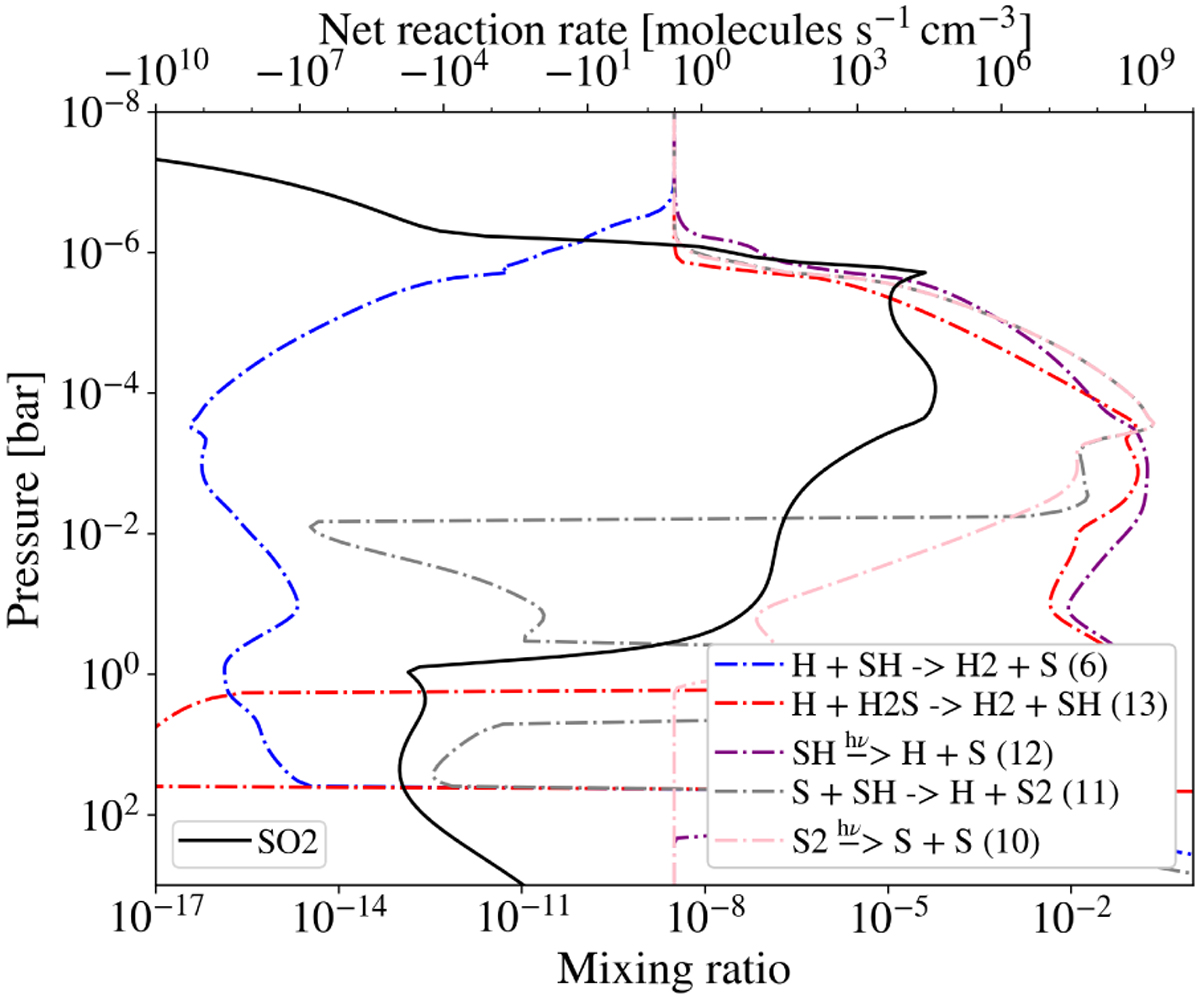

Fig. 5
Download original image
Mixing ratio of SO2 (solid line) and net reaction rates of various chemical reactions, subtracting the reverse reaction rate from the forward reaction rate (dash-dotted lines) in the fiducial model. We see that reactions (10), (11), (12), and (13) are particularly pronounced in the region of the atmosphere where SO2 is abundant.
