Fig. 12


Download original image

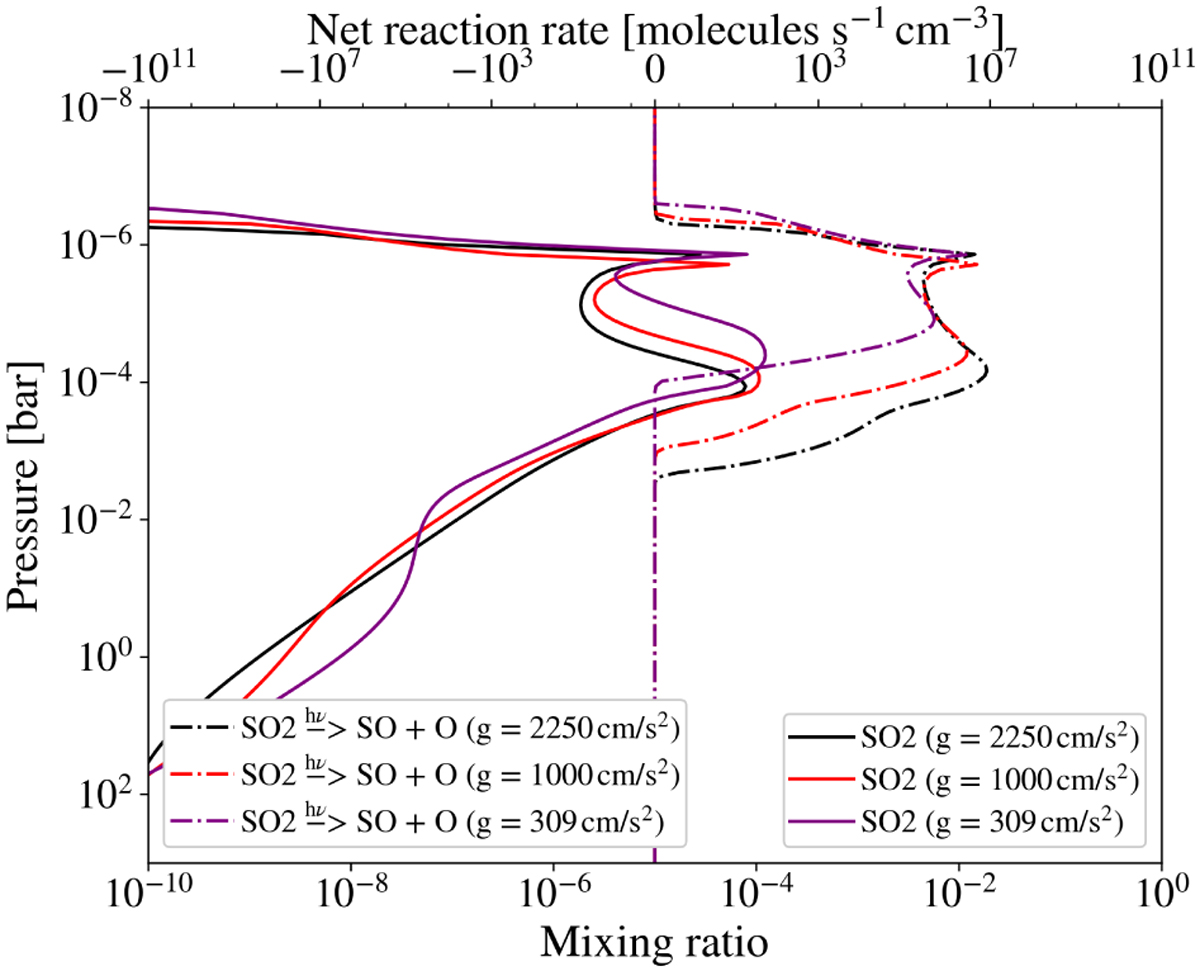

Mixing ratios of SO2 (solid lines) and the rate of the dominant SO2 photodissociation branch (dash-dotted lines) in the fiducial model with an isothermal TP profile of 740 K. We see that the mixing ratio of SO2 is elevated and photodissociation of SO2 is diminished in the models with lower surface gravity.
