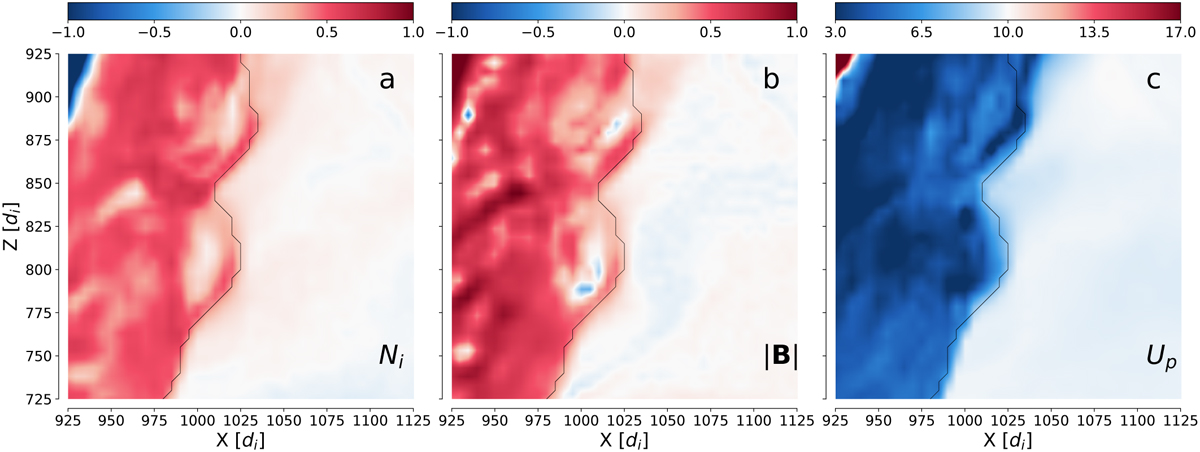

Transient structure along the location of the bow shock in the X-Z plane of the turbulent simulation at t=250Ωci1$t = 250\Omega _{{\rm{ci}}}^{ - 1}$. (a) Ion density Ni (logarithmic scale, in units of n0). (b) Total magnetic field intensity |B| (logarithmic scale, in units of B0). (c) Proton bulk speed Up (linear scale, in units of CA, in the shock’s reference frame).
