Fig. 2

Download original image

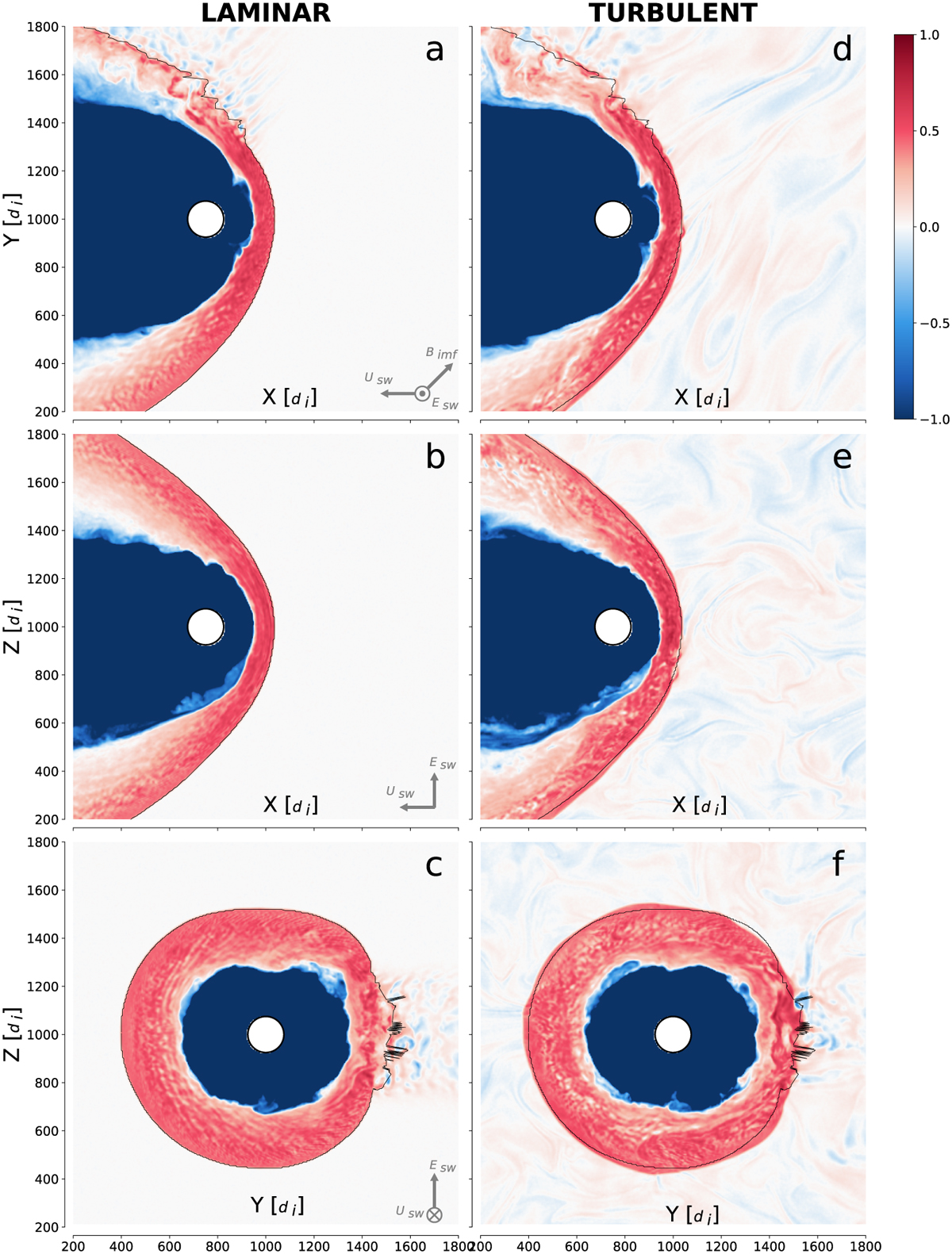

Comparison of ion density in logarithmic scale between laminar (a–c) and turbulent (d–f) simulations at for the same 2D planes that intersect the center of the planet. The initial solar-wind magnetic field Bsw is contained in the X–Y plane (in a 45° angle). In the planet’s reference frame, the +Z direction contains the solar-wind convection electric field Esw , whereas the solar-wind bulk velocity Usw is along –X; these are given as indicators. The position of the bow shock based on a density threshold for the laminar simulation (left column) is shown for comparison as a black contour line for both simulations.
