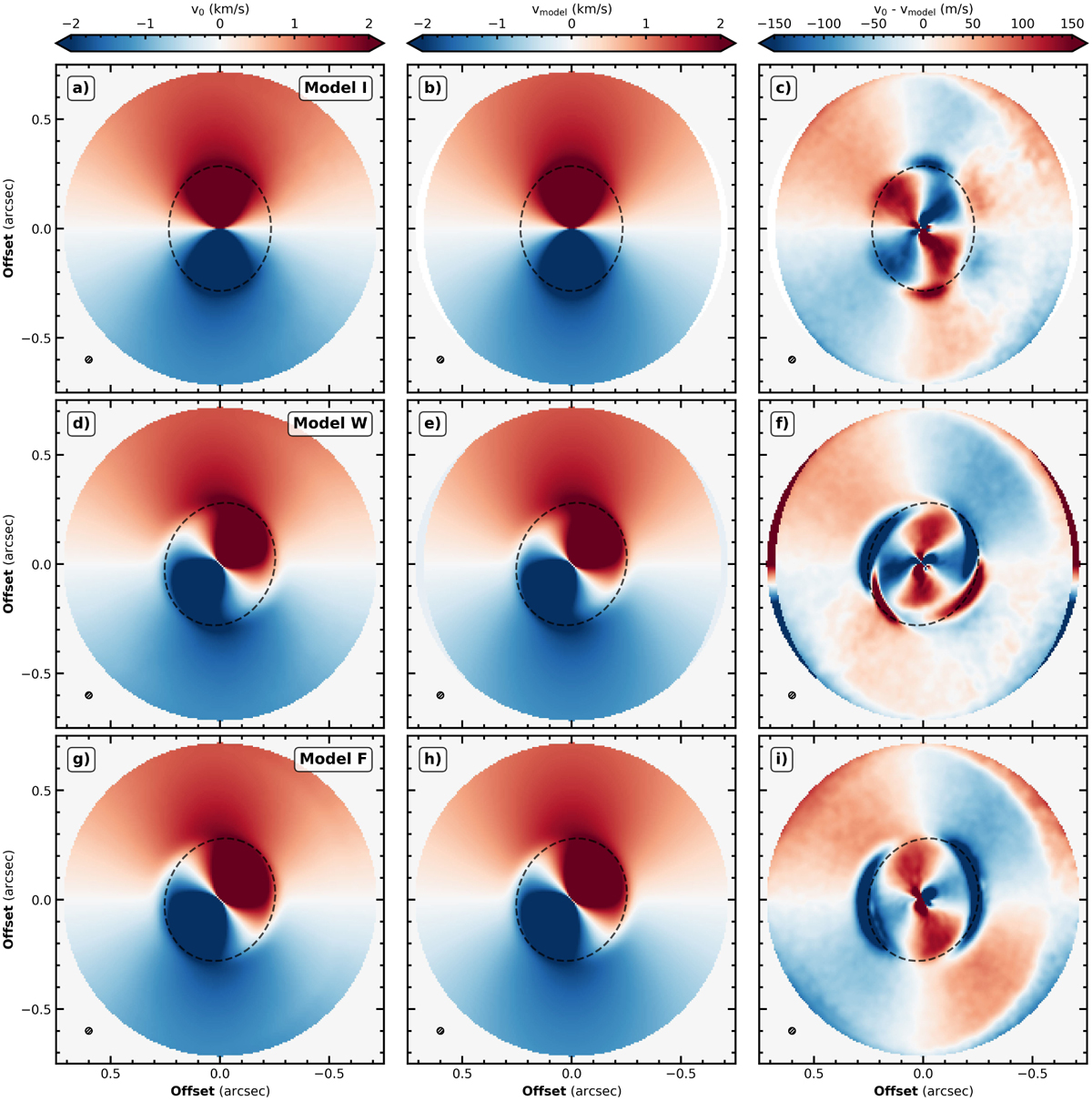

Gallery of v₀ velocity maps for Model I, W, and F, indicated in the top right corner. The left column displays the synthetic velocity maps, the middle column shows the respective best-fit, and the right column illustrates the residuals after subtracting a best-fit model. The beam size is shown in the lower left corner of each panel, and the black dashed line marks the radius at which the transition occurs.
