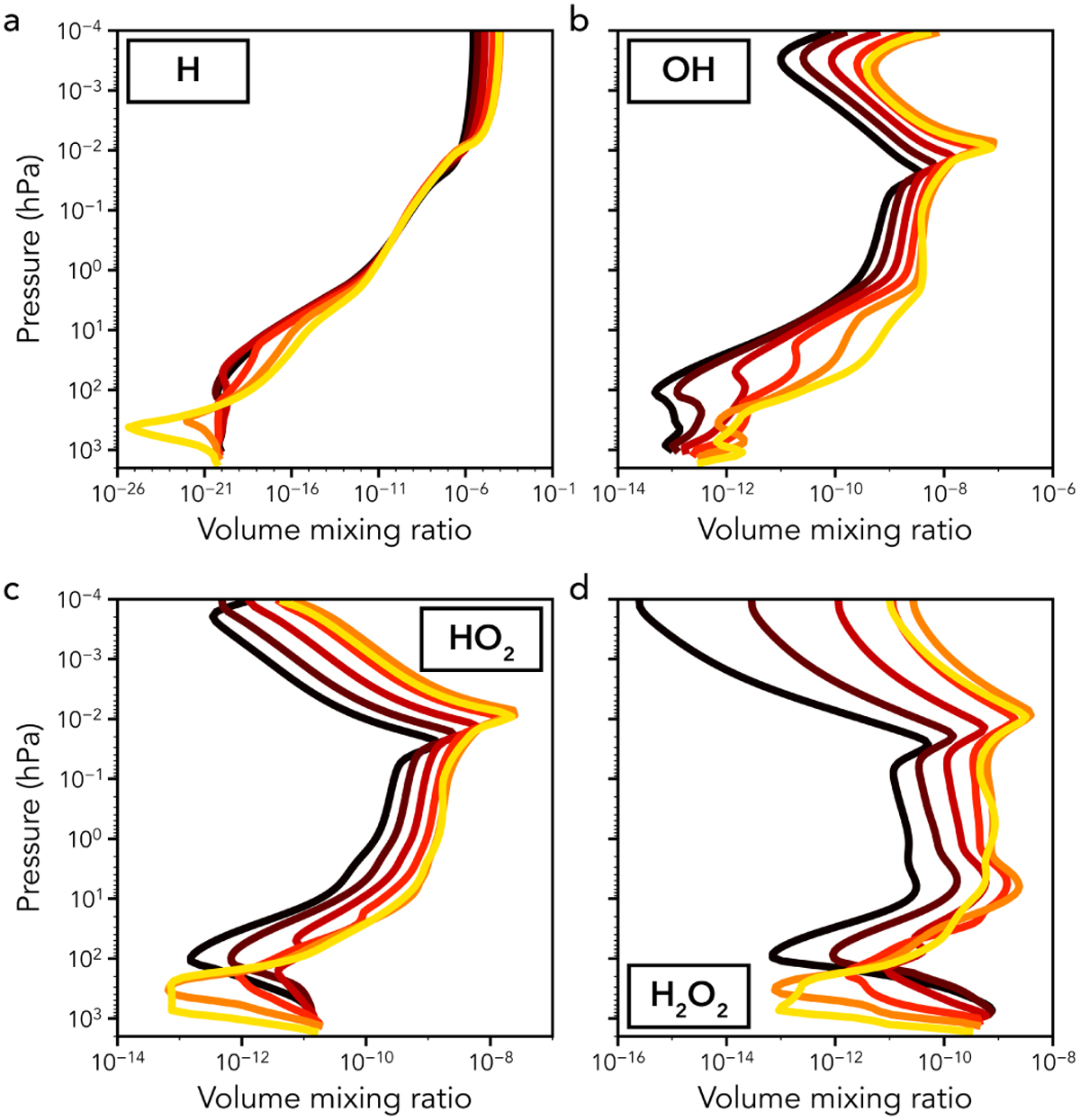

Individual VMRs of H (a), OH (b), and HO2 (c) that summed together produce the profile of the HOX chemical group (Figure 3b), as well as H2O2 (d), a reservoir for HOX species, for biotic model runs at solar constant 1.0, 1.1, 1.2, 1.3, 1.4, and 1.5 (see Figure 1 for the colour legend).
