Fig. 12


Download original image

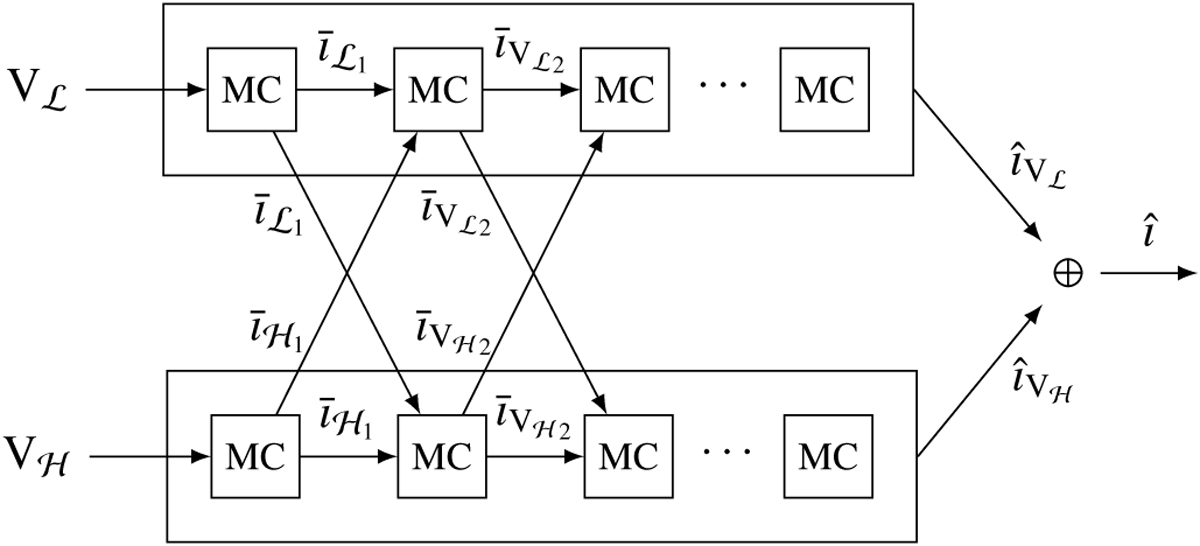

Example workflow of how parallelism will work with our proposed method. We look to reconstruct full-resolution images in parallel, achieved by sharing the deconvolved residuals across different nodes after each major cycle, denoted as MC in the figure. A low and high- resolution image are produced after the first major cycle, denoted as ι¯1 and ι¯1${\bar \iota _{{{\cal L}_1}}}{\rm{and}}{\bar \iota _{{{\cal H}_1}}}$ respectively. Afterwards, full-resolution images ι¯Vn${\bar \iota _{{{\rm{V}}_{{{\cal L}_n}}}}}$ and ι¯Vn${\bar \iota _{{{\rm{V}}_{{{\cal H}_n}}}}}$ are produced. The final reconstructed images of their respective nodes, ı^V and ı^V${\hat \imath _{{{\rm{V}}_{\cal L}}}}{\rm{and}}{\hat \imath _{{{\rm{V}}_{\cal H}}}}$, are then combined to produce the final reconstructed image î.
