Fig. 2


Download original image

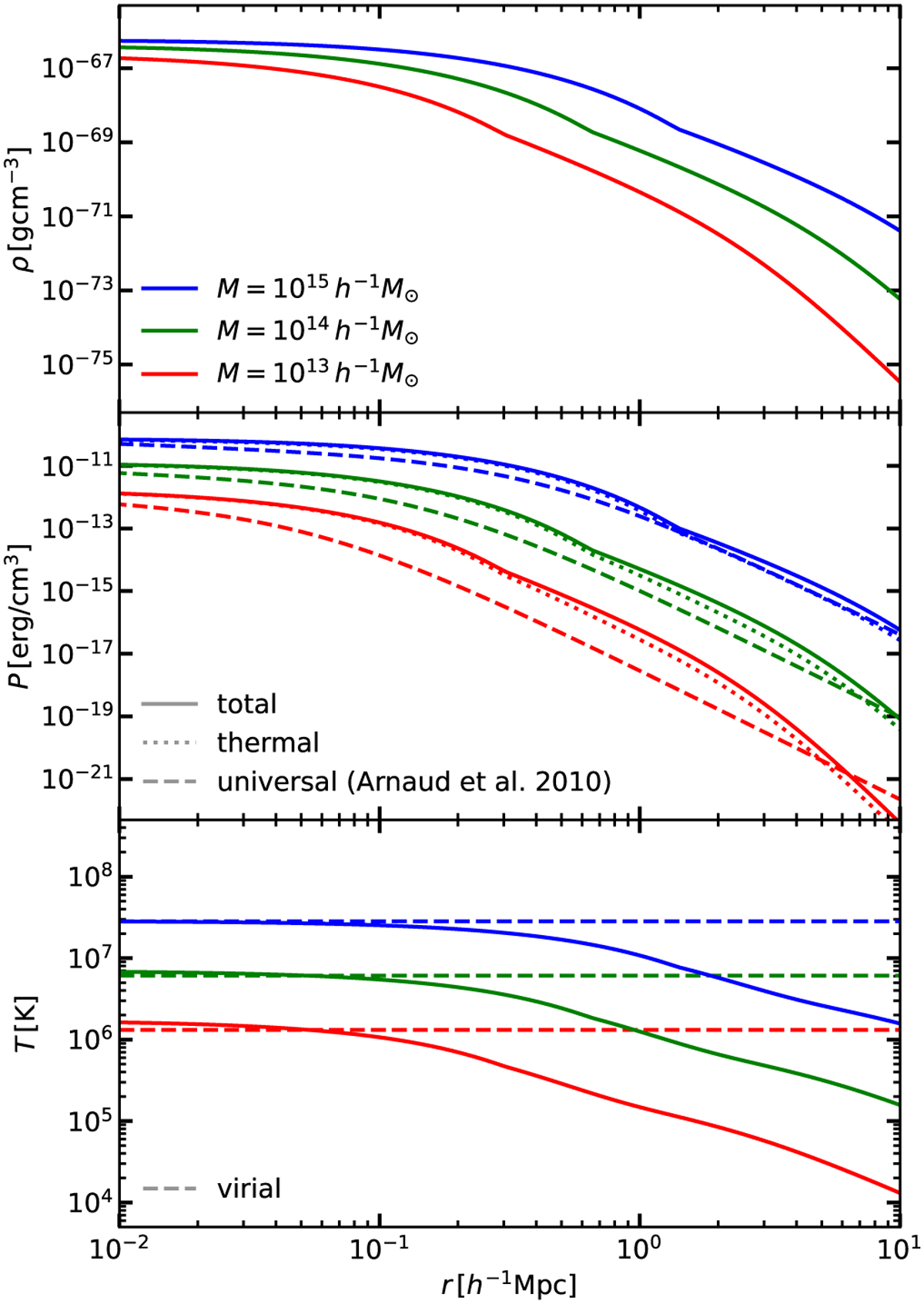

Density (upper panel), pressure (central panel), and temperature (lower panel) profiles of the bound gas for haloes in the mass range 1013–1015 h−1 M, according to the legend. We show both total and thermal pressure, with solid and dotted lines, respectively. For visual comparison, we show the ‘universal’ pressure profiles from Arnaud et al. (2010) and the virial temperature with dashed liens. We stress that the BCM parameters allow for changes in the shape and normalisation of the profiles, and, in this case, we did not tune them to reproduce any specific profile.
