Fig. B.2.

Download original image

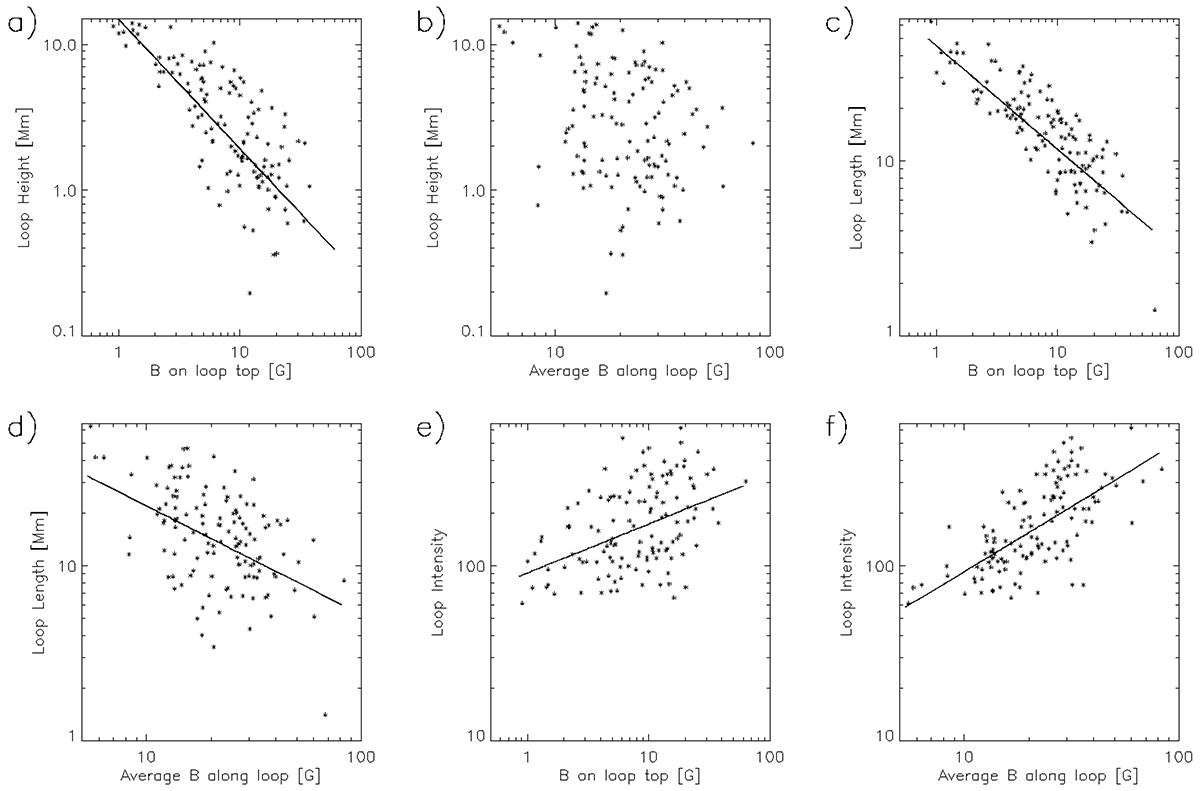

Scatter plots of some statistical properties for 126 loops. (a) Magnetic field strength at the loop top vs. loop height (Pearson correlation coefficient cP of −0.59), (b) Average magnetic field strength along the loop vs. loop height (cP = −0.30) (c) Magnetic field strength on loop top vs. loop length (cP = −0.64), (d) Average magnetic field strength along the loop vs. loop length (cP = −0.44), (e) Magnetic field strength on loop top vs. loop average intensity (cP = 0.35), (f) Average magnetic field strength along the loop top vs. loop average intensity (cP = 0.58).
