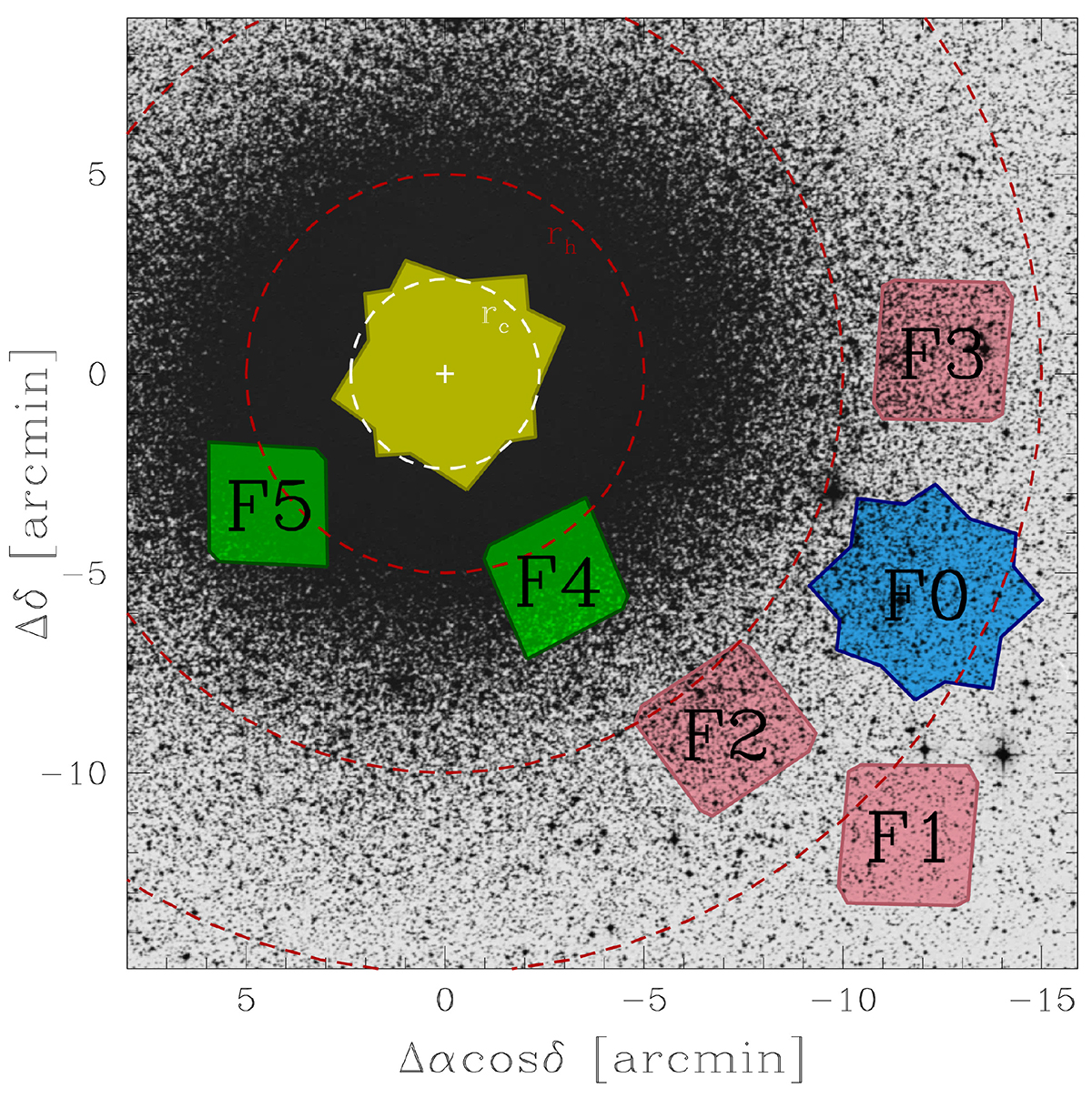

Outlines of the fields observed in HST programs GO-14118+14662 (P.I.: Bedin) and GO-16427 (P.I.: Scalco), superimposed on a DSS image of ω Cen. The primary GO-14118+14662 field (F0) is shown in blue, while the three GO-14118+14662 parallel WFC3 fields are shown in pink. The two GO-16427 fields are shown in green. The data discussed in this paper come from fields F2, F3, F4, and F5. We also show the central field from Bellini et al. (2017a,b,c) in yellow. Units are in arcminutes measured from the cluster centre. The white dashed circle marks the r_c while the red dashed circles mark the half-light radius (r_h = 5.00 arcmin; from Harris 1996, 2010), and 2 r_h and 3 r_h from the centre.
