Fig. F.1


Download original image

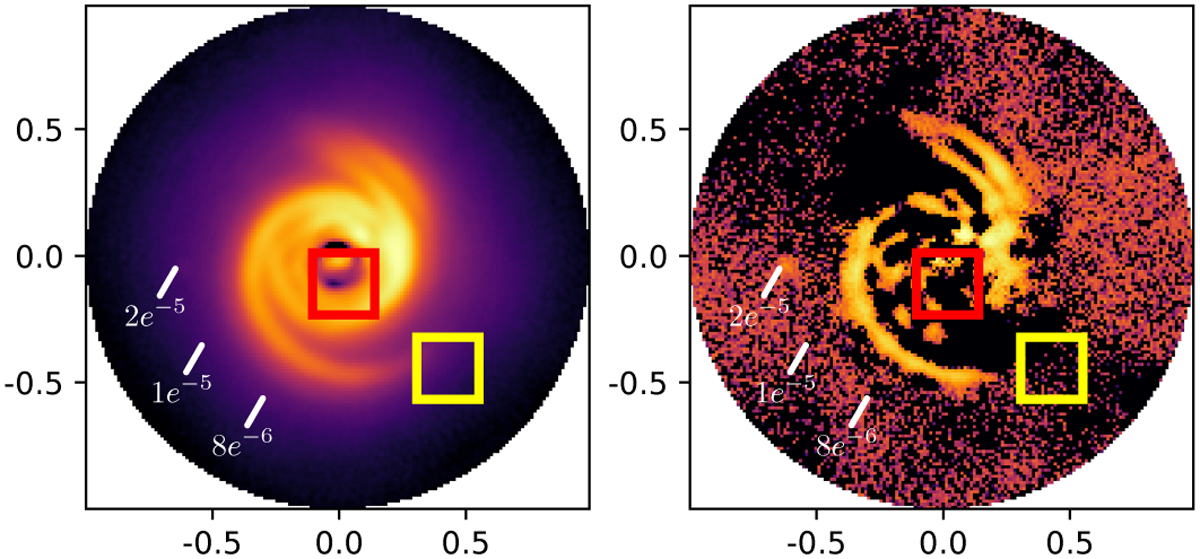

Results of IPCA (left) and 3-rank PCA with ADI only (right) for the VLT/SPHERE dataset of HD 36112 (Ren et al. 2023). Three simulated companions at a separation of 0.6$\[0^{\prime \prime}_.{6}\]$ have been injected into the cube, with contrasts of 8 × 10−6, 1 × 10−5, and 2 × 10−5. White lines indicate their positions. Two squares are displayed to mark the locations of the two claimed protoplanets: a red square at 0.1$\[0^{\prime \prime}_.{1}\]$, indicating the candidate proposed by Reggiani et al. (2018), and a yellow square at 0.6$\[0^{\prime \prime}_.{6}\]$, referring to the candidate proposed by Wagner et al. (2019).
