Fig. 2
Download original image

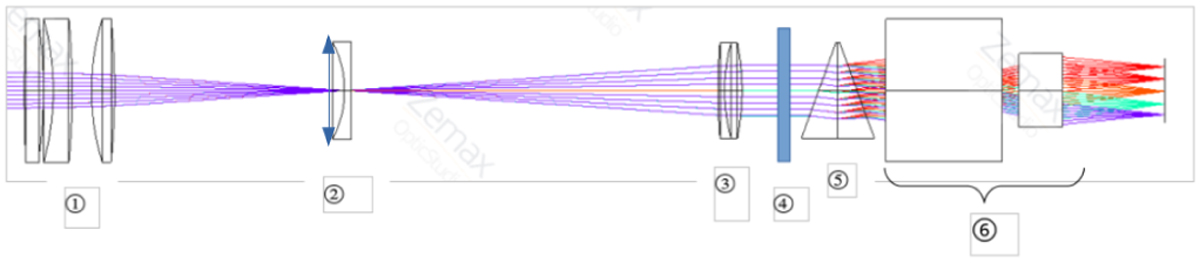

MISTRAL optical scheme: (1) Focal reducer, (2) field lens −128 mm (with the slit a few mm before), (3) achromat collima-tor f = 200 mm, (4) filter wheel, (5) VPH 600 tr/mm with two prisms 19,8° (blue)/25,6º (red), and (6) 100 mm lens.
