Fig. 2.
Download original image

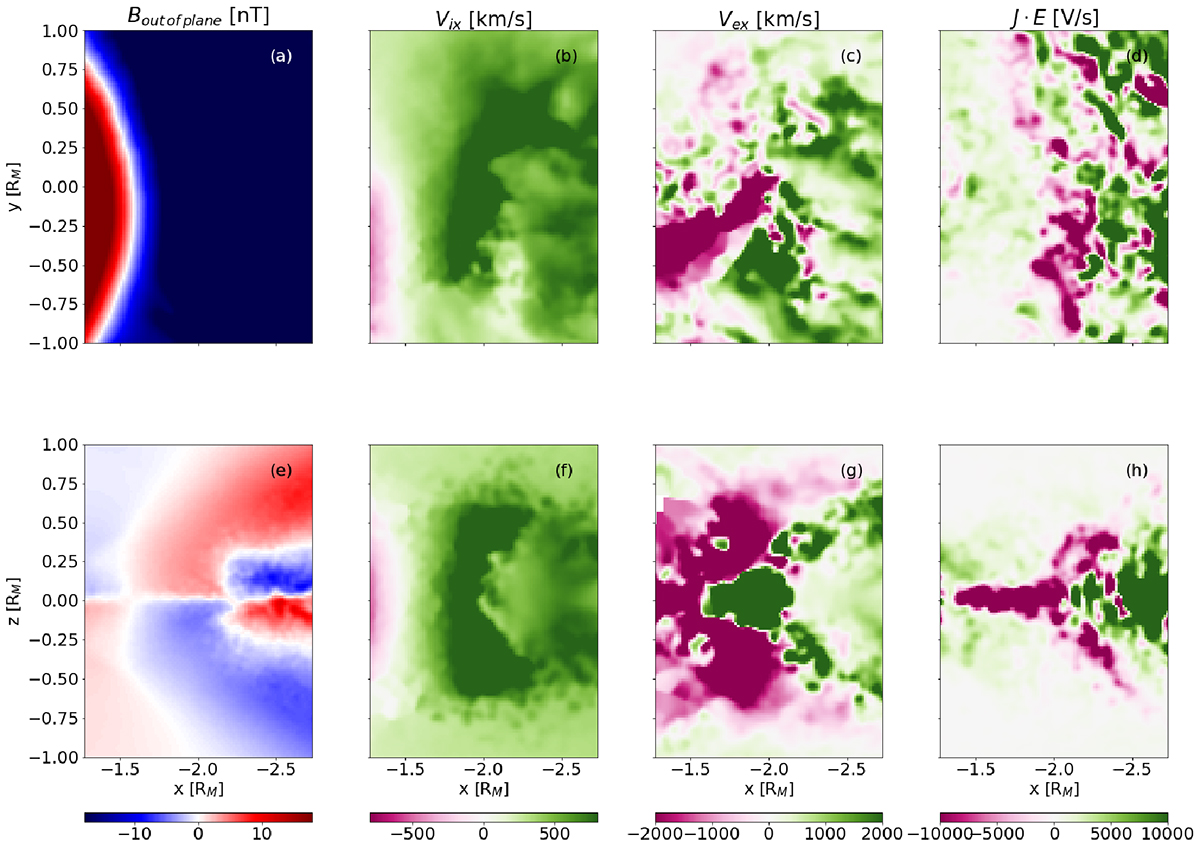

Overview of the diffusion regions in Run1. From left to right: Out of plane magnetic field component, the ion velocity, electron velocity, and J ⋅ E, on the equatorial plane (top) and meridian (bottom). All quantities are computed at t = 3RM/vsw, x.
