Fig. 7.

Download original image

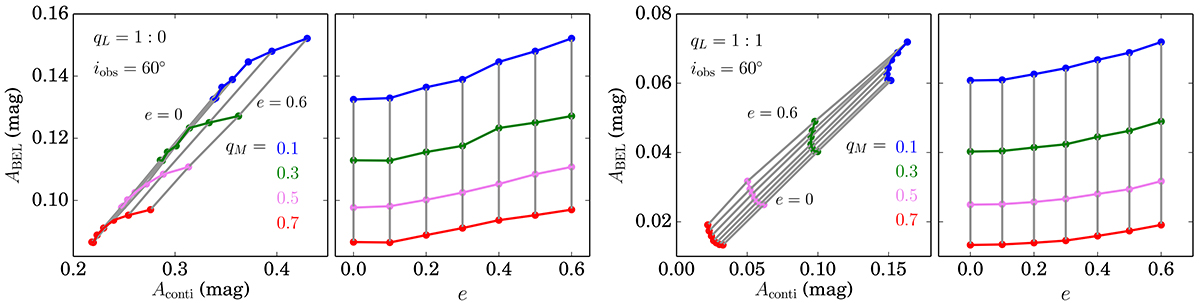

Variation of BEL amplitudes (ABEL) with different continuum amplitudes (Aconti) and orbital eccentricities (e) of BBHs with M•• = 109 M⊙ at ω = 0°. The two left columns show ABEL as a function of Aconti (left panel) and e (middle-left panel) for the case when only the secondary BH is active (qL = 1 : 0), and the two right columns show ABEL vs. Aconti (middle-right panel) and ABEL vs. e (right panel) for the case when both the BHs are active with qL = 1 : 1. In each panel, the points connected by lines of the same color show results of a fixed mass ratio, and the four different mass ratios qM = 0.1, 0.3, 0.5, and 0.7 are colored in blue, green, violet, and red, respectively. Each group of four points with different qM but the same e are linked by gray lines.
