Fig. E.1


Download original image

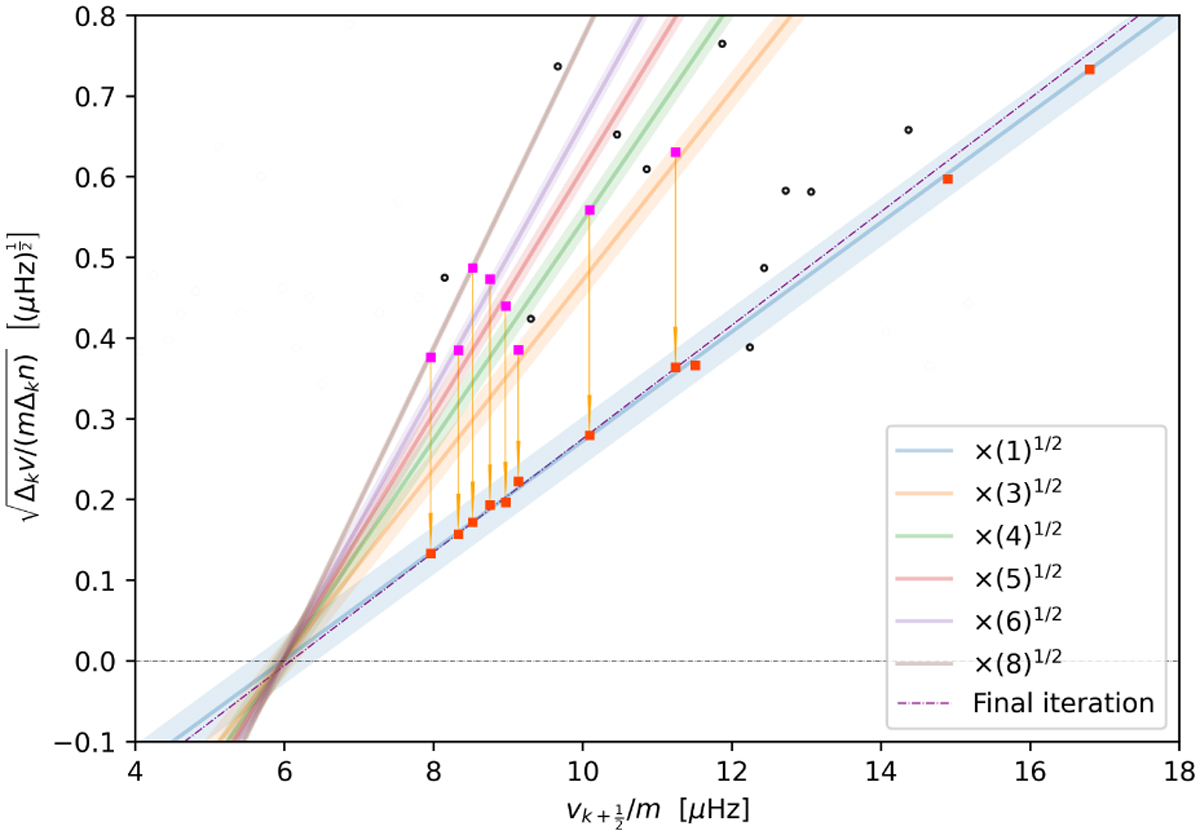

ν versus Δv$\sqrt {{\rm{\Delta }}v} $ diagram for EPIC 221788083, with frequencies ranging from 7.9 to 17.1 μHz attributed to prograde sectoral modes with m =1. Magenta squares indicate modes with “jumps” in the radial order n, with Δkn of 2, 3, …, represented by colored lines starting with orange. Red squares indicate modes with Δkn = 1 or corrected by a factor of 1/Δkn$1/\sqrt {{{\rm{\Delta }}_k}n} $, yellow arrows indicate when this correction was applied. Open black points were discarded. The solid blue line represents the first iteration, and the purple dashed line indicates the inclination after convergence. The intercept of the dashed line with the 0.0 line estimates the average rotation frequency, and the slope measures P0. For EPIC 221788083, the values obtained are vrot = 6.1 ± 0.1 μHz, P0 = 4.9 ± 0.2 · 103 s (see Takata et al. 2020).
