Fig. 8.
Download original image

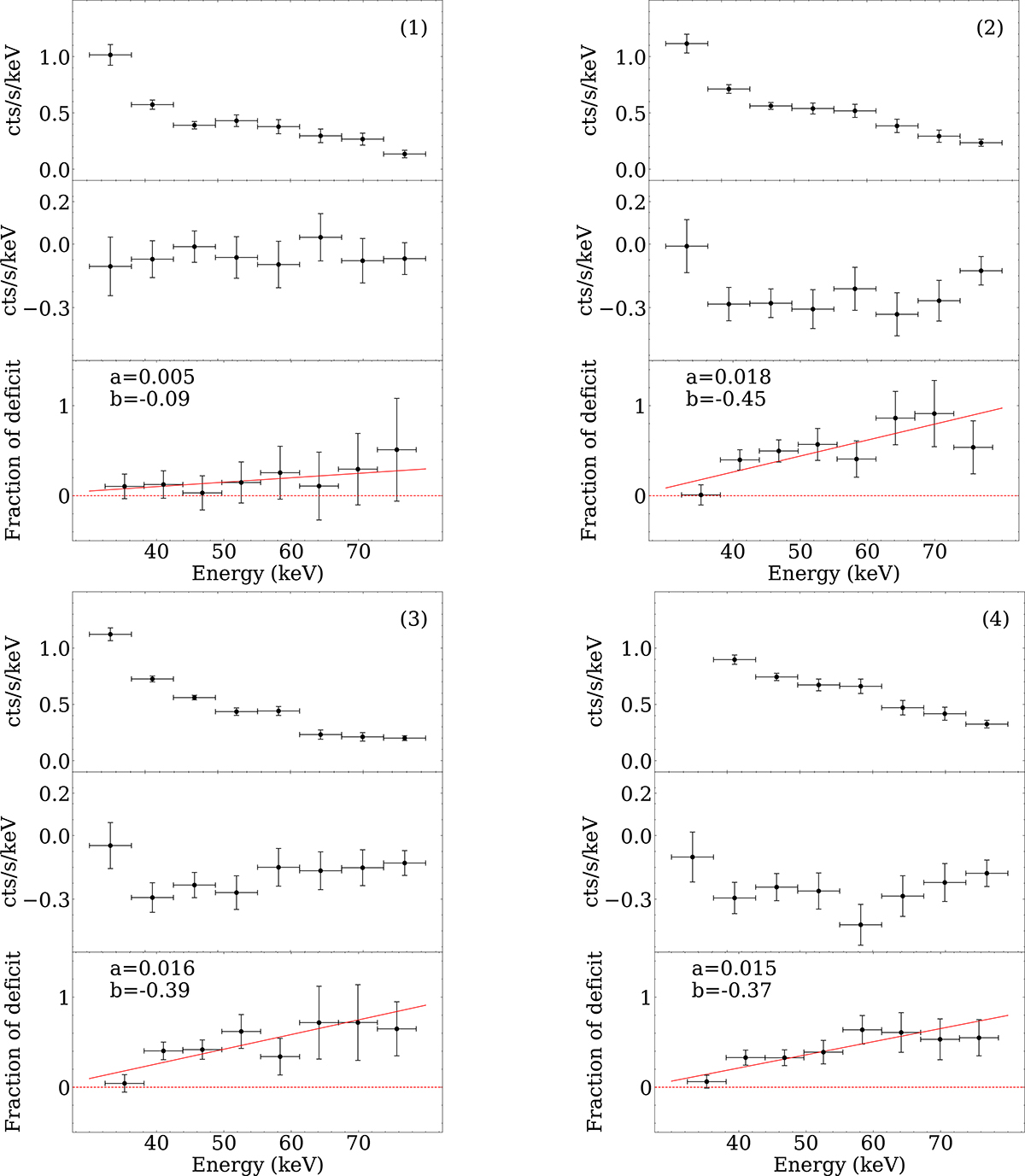

Top panel: spectrum of persistent emission by HE. Middle panel: detected spectrum of the bursts. Bottom panel: fraction of deficit vs. energy during the bursts detected by HE. Panels 1, 2, 3, and 4 correspond to the stacking of the bursts in the four regions 1, 2, 3, and 4 of Fig. 2. The red solid line represents the relationship between the fraction of deficit and energy.
