Fig. 16


Download original image

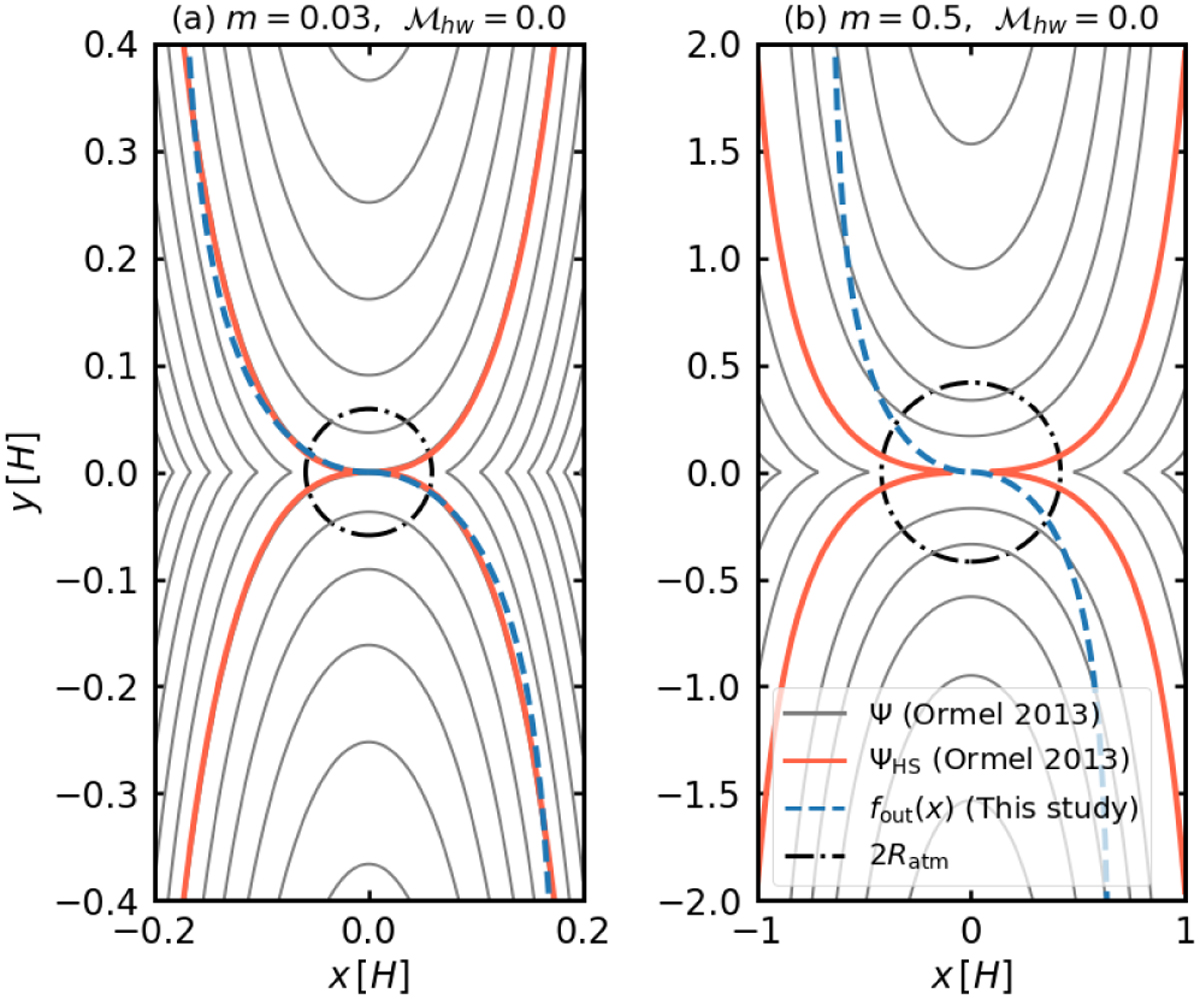

Isocontours of the stream function (the solid gray lines), Ψ, and the fitting formula of the critical recycling streamline at the midplane (Eq. (11); the dashed blue lines). The widest horseshoe streamlines characterized by ΨHS are highlighted with red. Isocontours of Ψ = 0.02−0.1 (panel a) and Ψ = 0.42–1.7 (panel b) are shown.
