Fig. 2.


Download original image

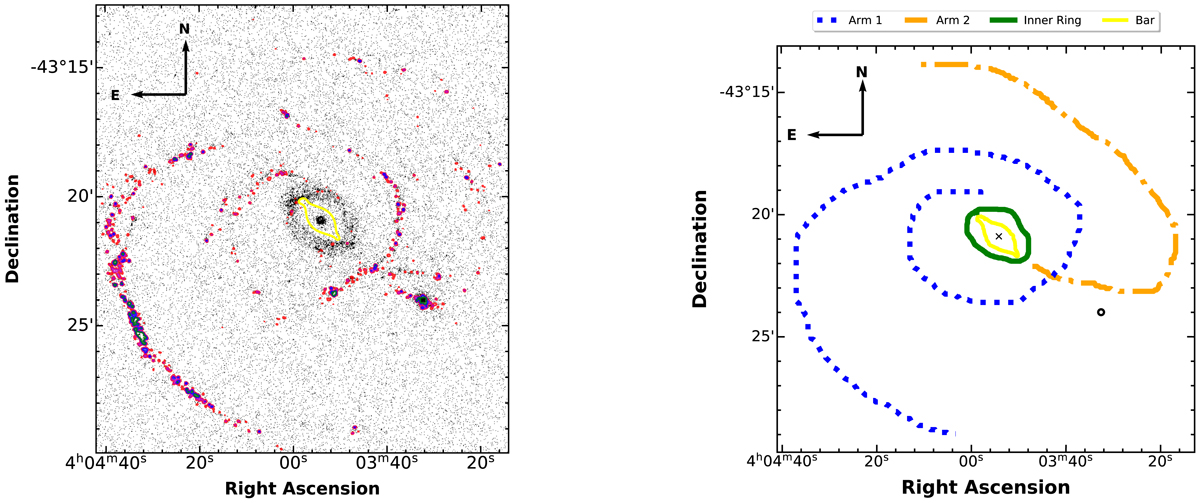

H I distribution and morphology of NGC 1512. Left: FUV image of NGC 1512 overplotted with MeerKAT H I column density contours. The contours of red, magenta, blue, and green colours represent column-density values (0.3, 0.35, 0.4 and 0.45) × 1021 cm−2 respectively. We extracted the contour over the galactic bar from the IRAC 3.6 μm image to identify its extent and overplotted it in yellow on the FUV image. Right: a schematic diagram of the morphologies identified in NGC 1512. The blue dotted line represents Arm 1, the orange dash-dotted line represents Arm 2, and the green continuous line represents the inner ring. The galaxy centres for NGC 1512 and NGC 1510 are represented with a cross and an open circle, respectively.
