Fig. 28
Download original image

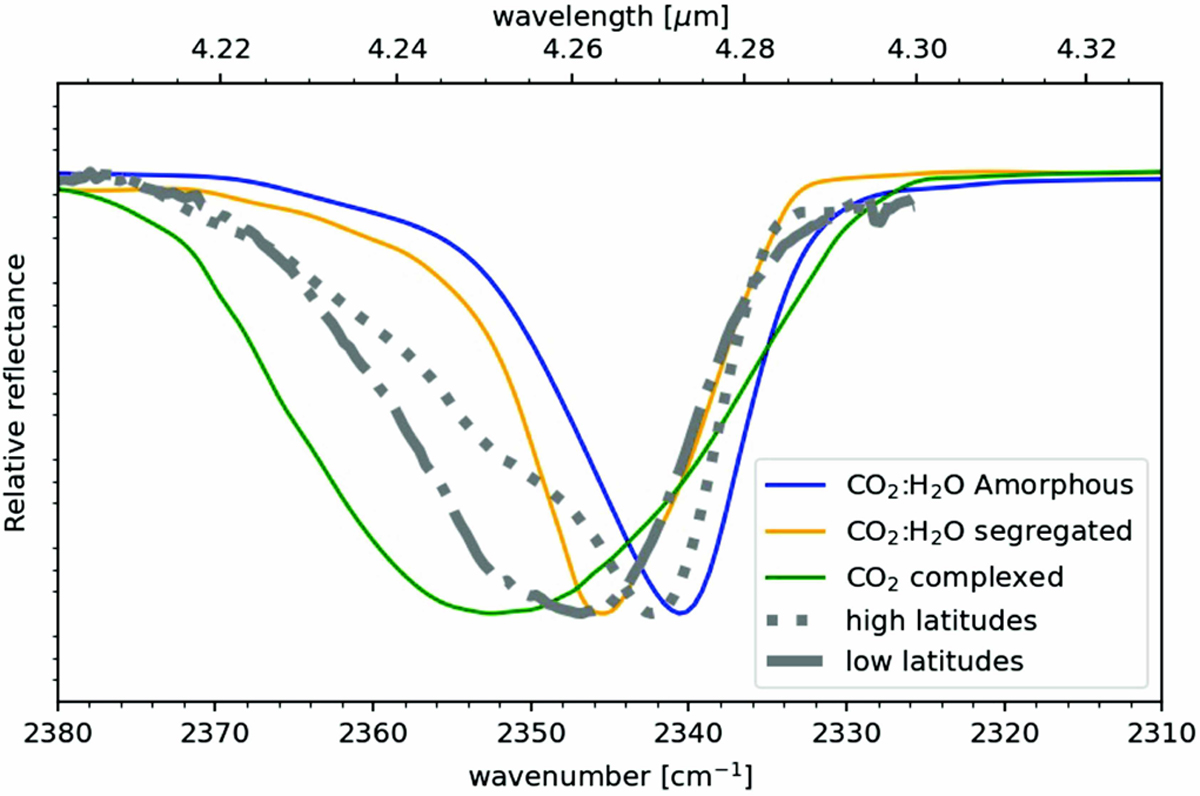

Comparison with laboratory data. CO2 band in Ganymede spectra at the pole (60–75°N; dotted gray line) and the equator (0–15°N; dot-dashed gray line) of the leading hemisphere compared to several experimental measurements of CO2 mixed with water ice at 170 K (Ehrenfreund et al. 1999; blue line), CO2 segregated in water ice at 138 K (He et al. 2018; yellow line) and CO2 complexed Jones et al. (2014; green line).
