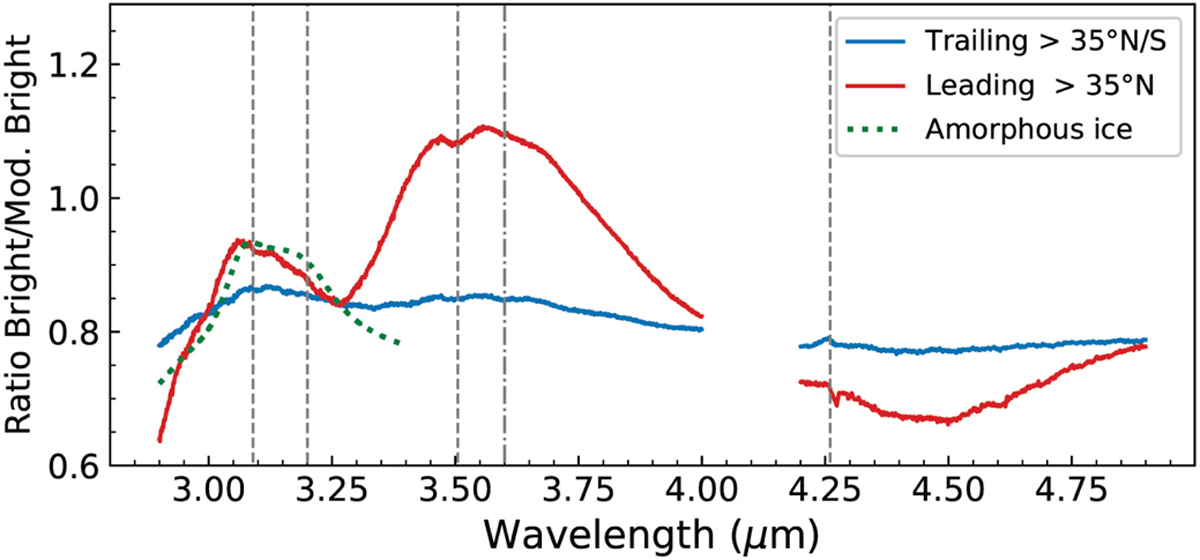

Fig. 22

Download original image
Comparison of bright and moderately bright terrains in Ganymede’s leading and trailing hemispheres, through spectral ratios. Moderately bright and bright terrains are defined by a Bond albedo AB = 0.35 − 0.4, AB = 0.4 − 0.6, respectively. For the leading hemisphere, only the northern regions at latitudes >35°N are considered, whereas for the trailing hemisphere, we consider both northern and southern high-latitude regions (>35°N/S). The spectrum shown in green dashed line is a spectrum of amorphous water ice obtained using Fresnel’s formulae (applicable for flat surfaces; Born & Wolf 1999) and the optical constants at 120 K of Mastrapa et al. (2009). The vertical dashed lines are at the wavelengths of the two main H2O Fresnel peaks (3.09 and 3.20 µm), H2O2 (3.505 µm) and CO2 (4.26 µm) absorption bands. The vertical dashed-dotted line at 3.6 µm is roughly at the H2O inter-band position.
