Fig. 5

Download original image

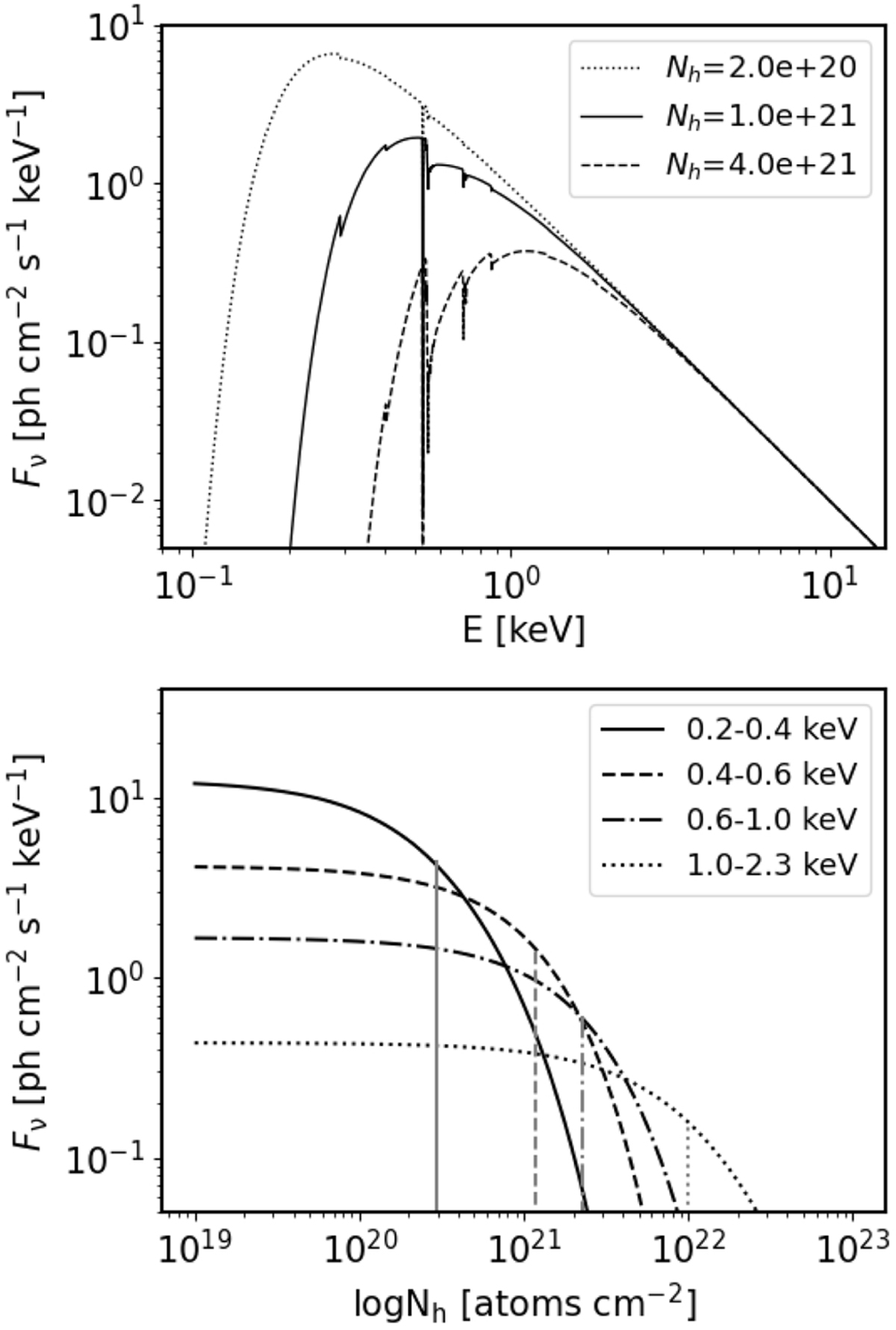

Effect of absorption on the X-ray spectrum. Top panel: energy dependence of the absorption spectrum. The unabsorbed spectrum is defined as Fv = v−2. The labeled lines show column densities matching the contours in Fig. 7. Bottom panel: effect of NHI on the broadband flux. The vertical lines show the threshold at which Fv decreases by a factor of the unabsorbed value in the same band.
