Fig. 9
Download original image

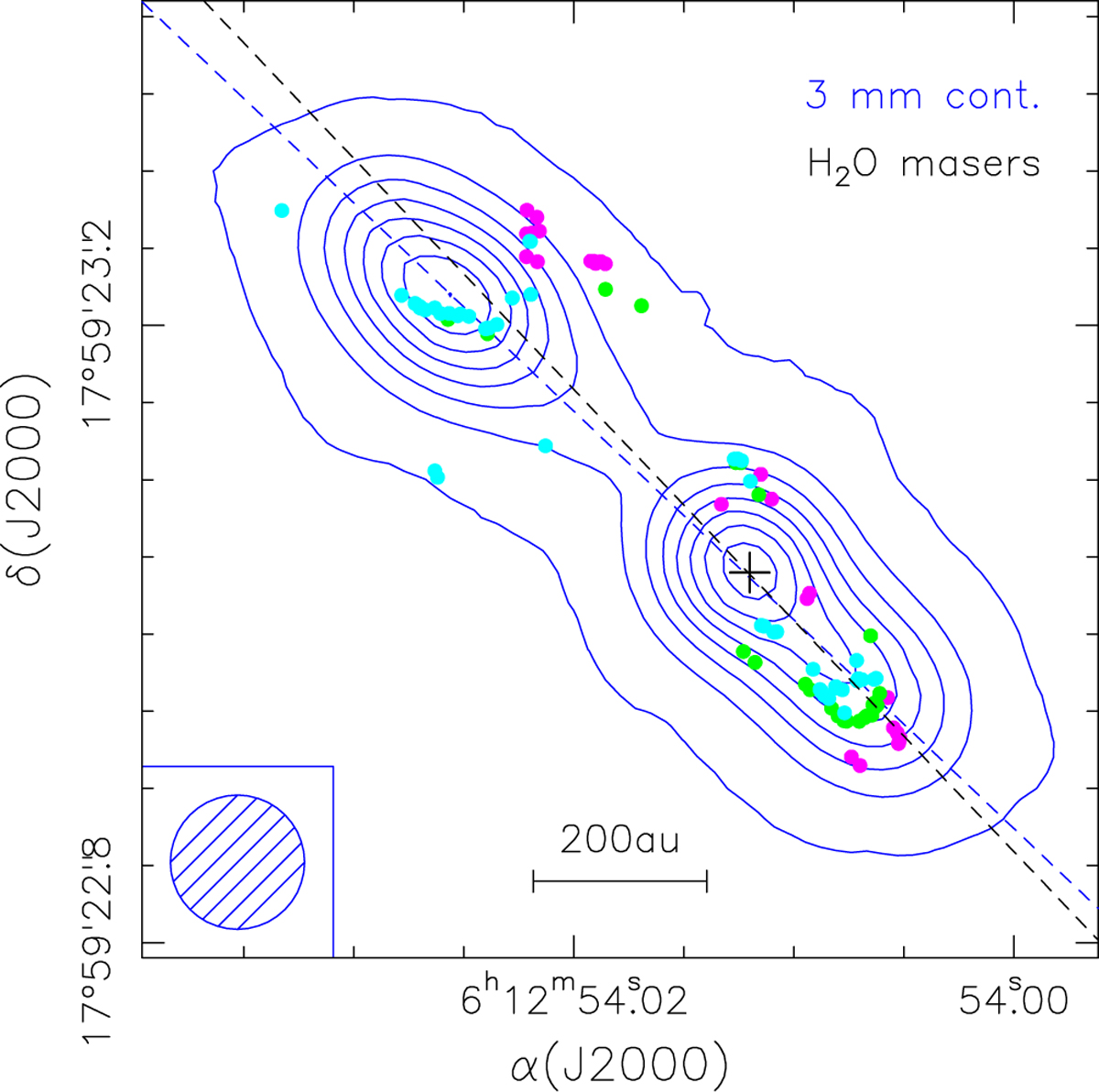

Water masers spots (solid circles) observed by Goddi et al. (2007; cyan), Burns et al. (2016; green), and Hirota et al. (2021; magenta) overlaid on the 3 mm continuum map (blue contours) of Fig. 1b. The dashed lines indicate the jet axes in the two tracers. The cross marks the position of the (proto)star. The circle in the bottom left represents the synthesised beam at 3 mm.
