Fig. 4.

Download original image

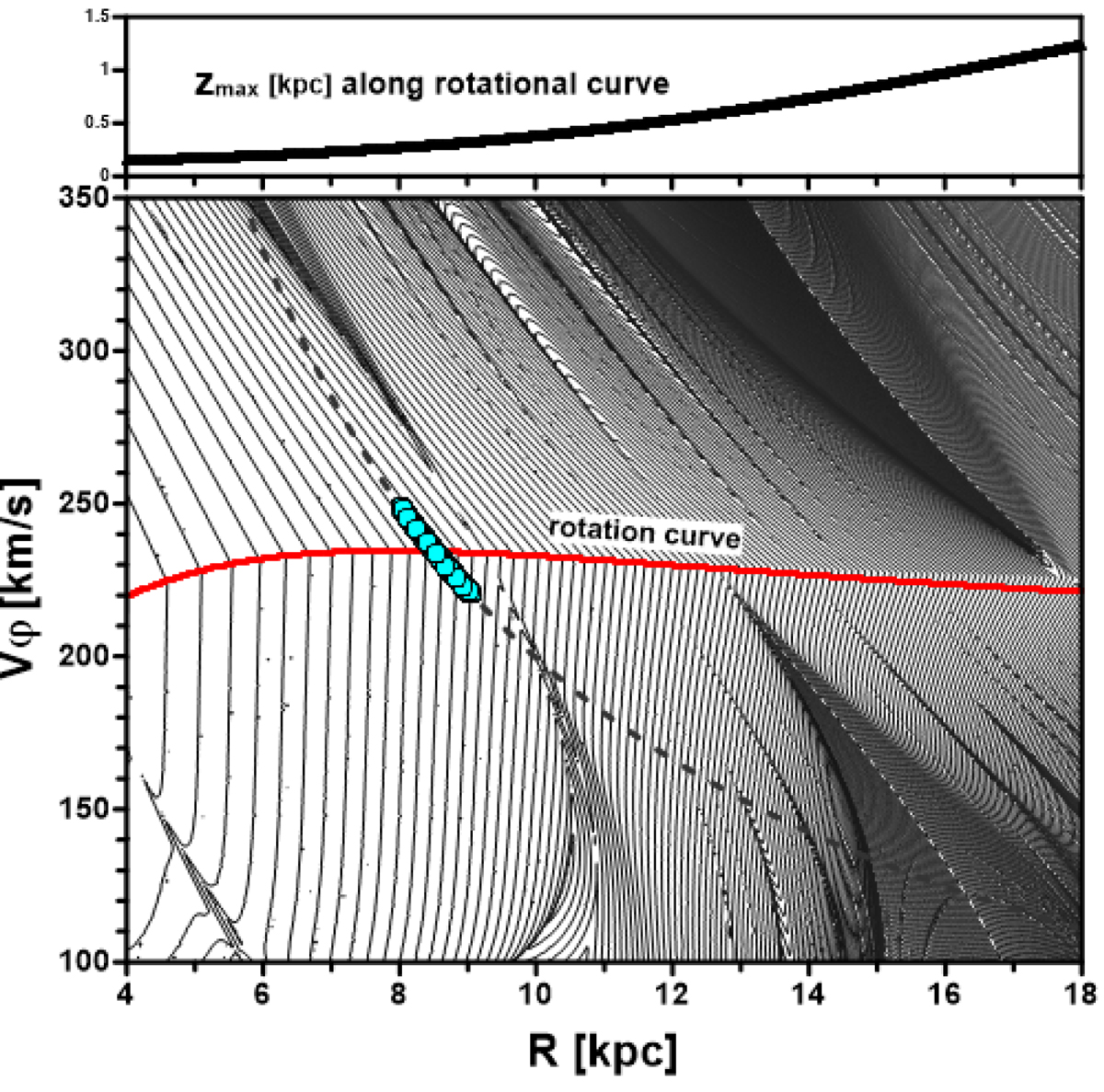

Representative R–Vφ plane shown in Fig. 2, with the same rotation curve (red dots) and the Sun’s orbit (cyan dots) along the Lz-level (dashed line). The equidistant levels are used to represent the amplitude of the vertical oscillation of the stellar orbits (see top panel to associate the absolute zmax-values), with the initial conditions z = 0 and Vz = 20 km s−1. Top panel: the amplitude of the vertical oscillation, zmax, calculated along the rotation curve, as a function of R.
