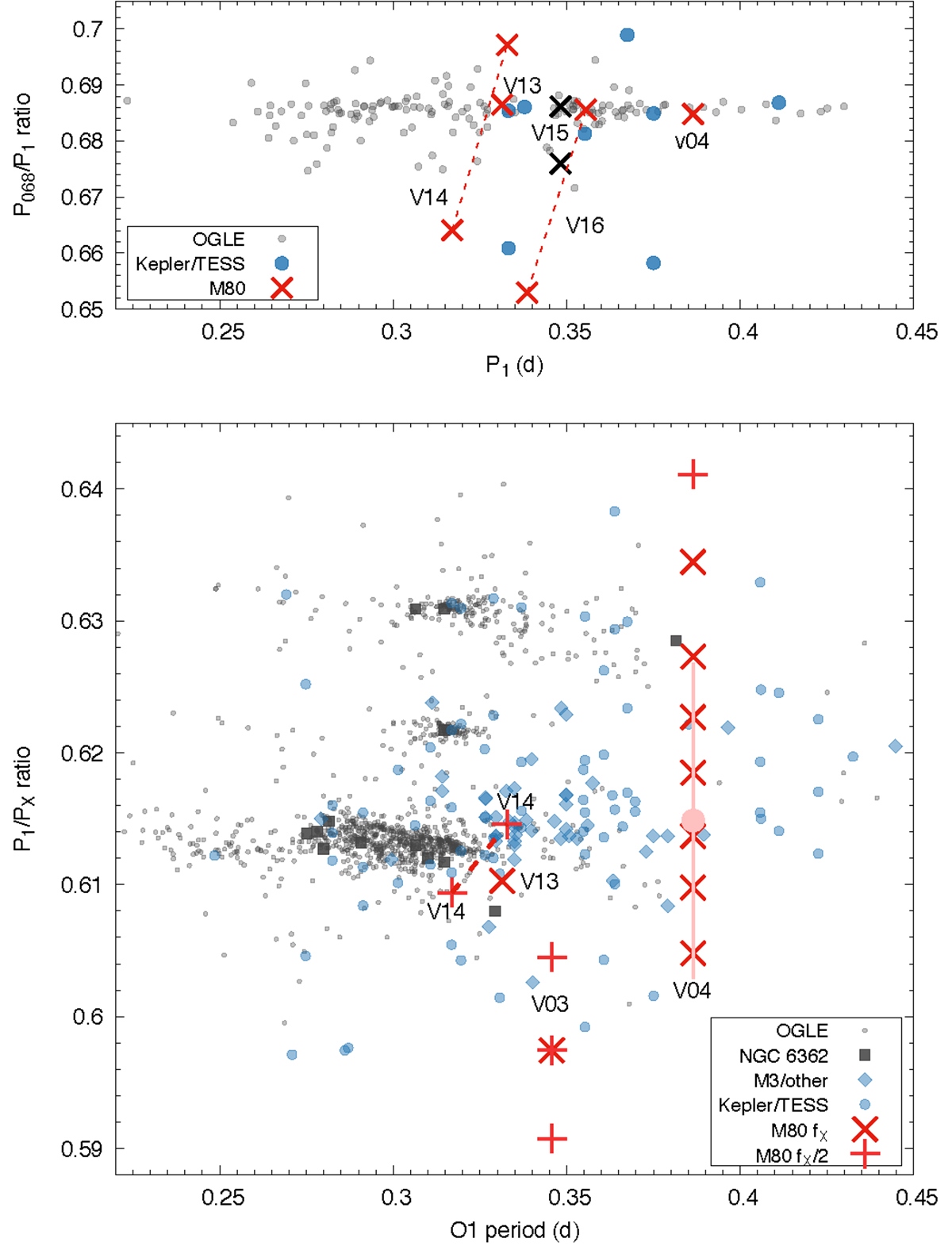

Fig. 8.

Download original image
Petersen diagrams of the two types of common additional modes in RRc stars. Upper panel: f0.68-type modes. Given the multitude of frequency peaks in V14 and V16, we include ratios between two possible sets of peaks. Lower panel: f0.61- or fX-type modes. Here, we plot the regular fX modes with X crosses, whereas + signs mark the positions of the fX/2 peaks when doubled. For V04, we also show the peak and FWHM of the Lorentzian fit to the peaks with the pink point and line. Note: in V03, the respective peaks overlap indicating that we observe the half of the fX peak, but in V04, the fX/2 signal lies outside of a pattern of fX frequencies. Here, we again show two possible ratios for V14. Underlying points are from Molnár et al. (2022) and references therein.
