Fig. 10.
Download original image

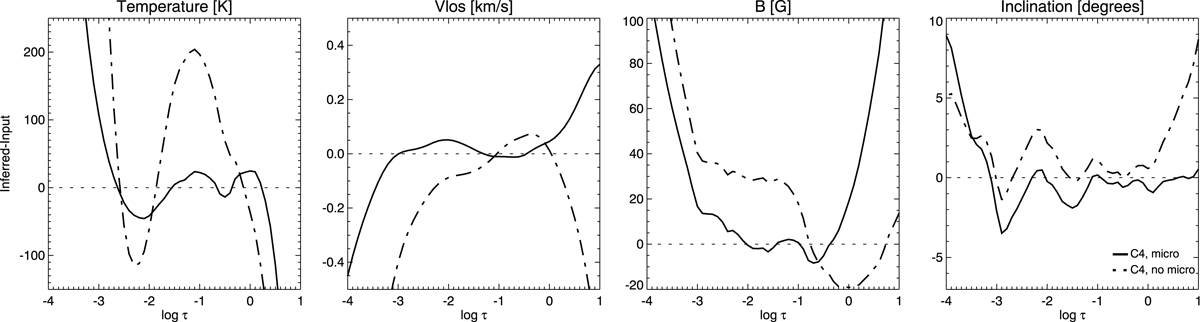

Average differences between the input and the inferred atmosphere at different optical depths. From left to right, the differences for temperature, LOS velocity, magnetic field strength, and inclination, respectively. Line styles correspond to the configuration C4 in Table 1 and W2 in Fig. 9 when setting the microturbulence as a free parameter (solid) or not (dashed).
