Fig. 11.

Download original image

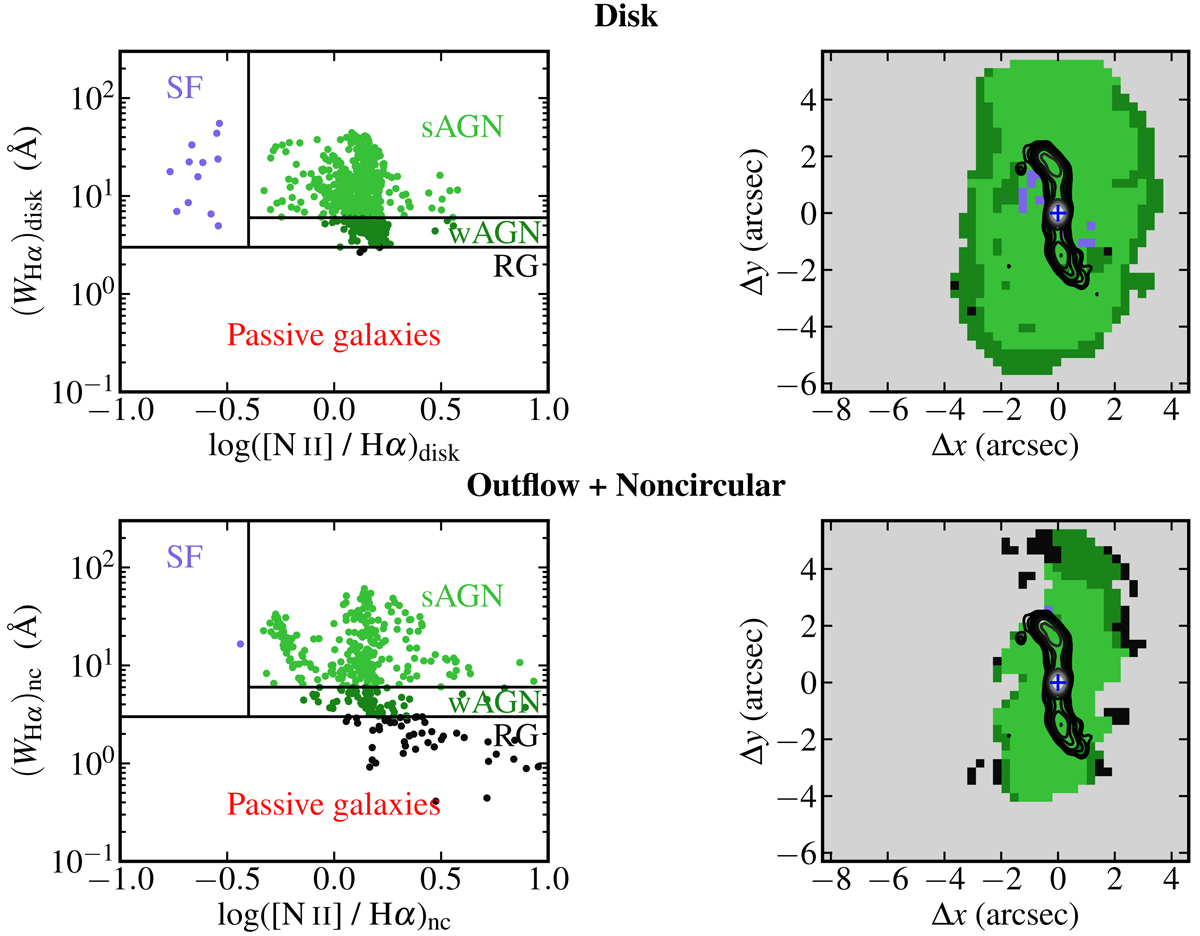

WHAN diagrams (left panels) for the disk component (top) and for the outflow and noncircular motion components (bottom) and the corresponding spatial distribution of the WHAN regions (right panels). See Cid Fernandes et al. (2011) for details regarding the different region definitions: star-forming galaxies (SF), strong AGN (sAGN), weak AGN (wAGN), and retired galaxies (RG).
