Fig. 8.
Download original image

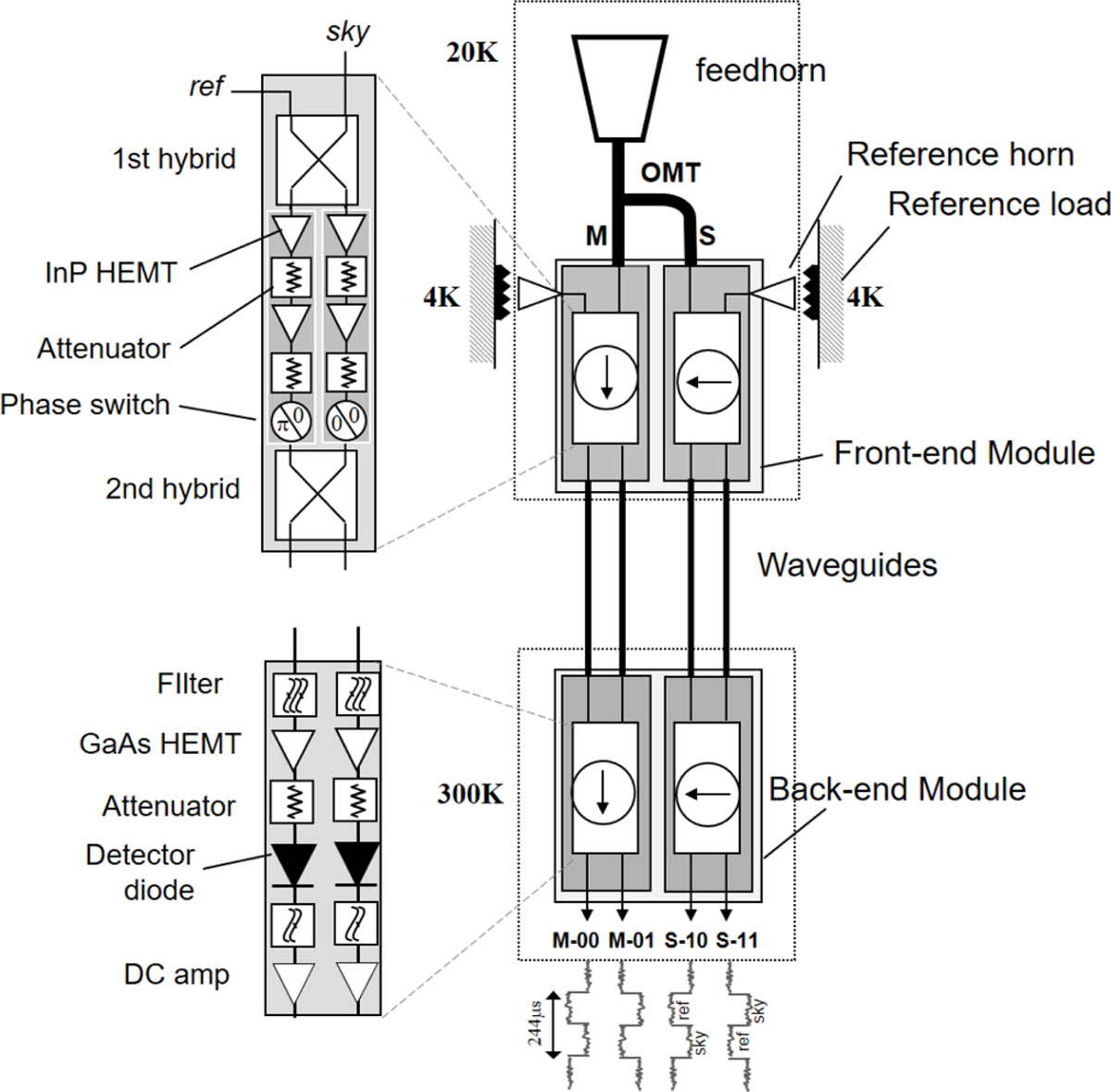

Schematic of an LFI radiometer chain, consisting of a feedhorn and OMT, and the two associated radiometers, each feeding two diode detectors. The insets show details of a front-end module (top) and of a back end module (bottom).
