Fig. 7
Download original image

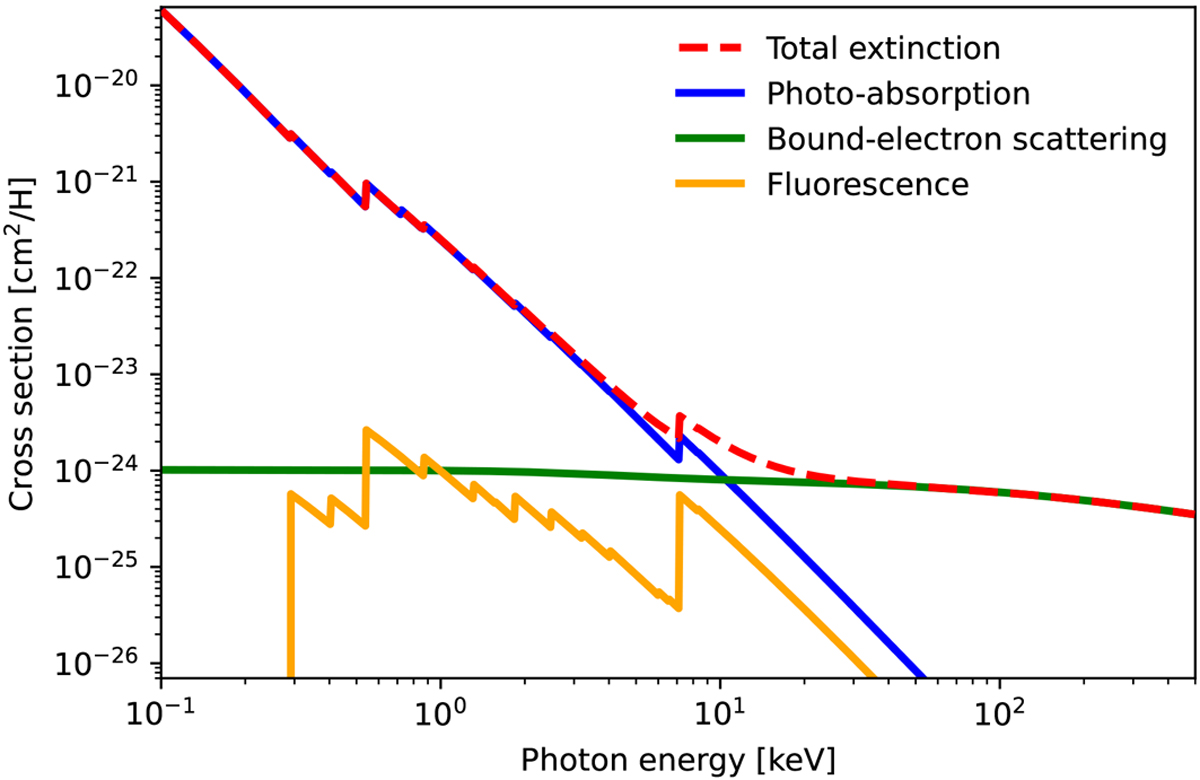

Total gas extinction cross section for Anders & Grevesse (1989) abundances and no dust. The effective photo-absorption (blue), bound-electron scattering (green), and effective fluorescent scattering (yellow) contributions are explicitly shown, to illustrate how these processes shape the X-ray spectrum in radiative transfer simulations.
