Fig. 18
Download original image

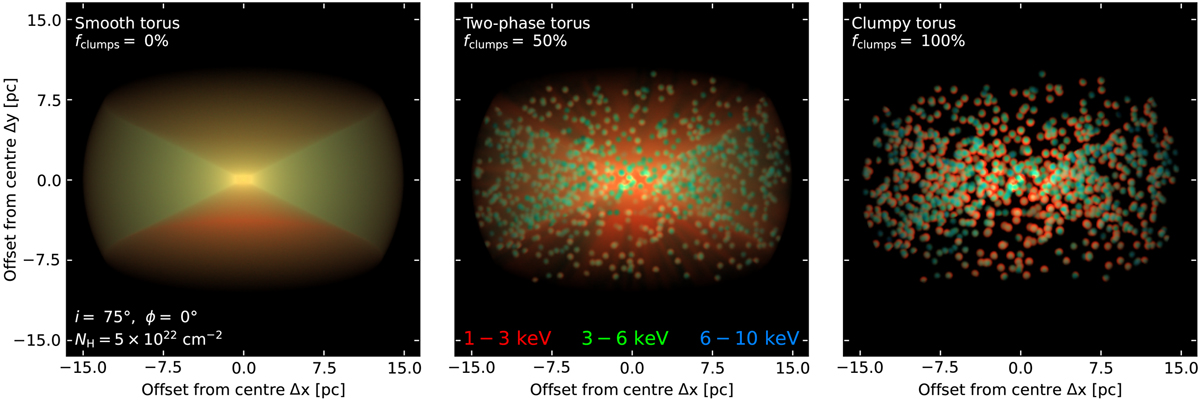

SKIRT X-ray images of a smooth torus model (left), two-phase torus model (middle), and clumpy torus model (right), observed at i = 75°. The RGB colours correspond to the integrated fluxes in the given ranges. Clumpy AGN tori represent truly 3D transfer geometries with no spatial symmetries.
