Fig. 8


Download original image

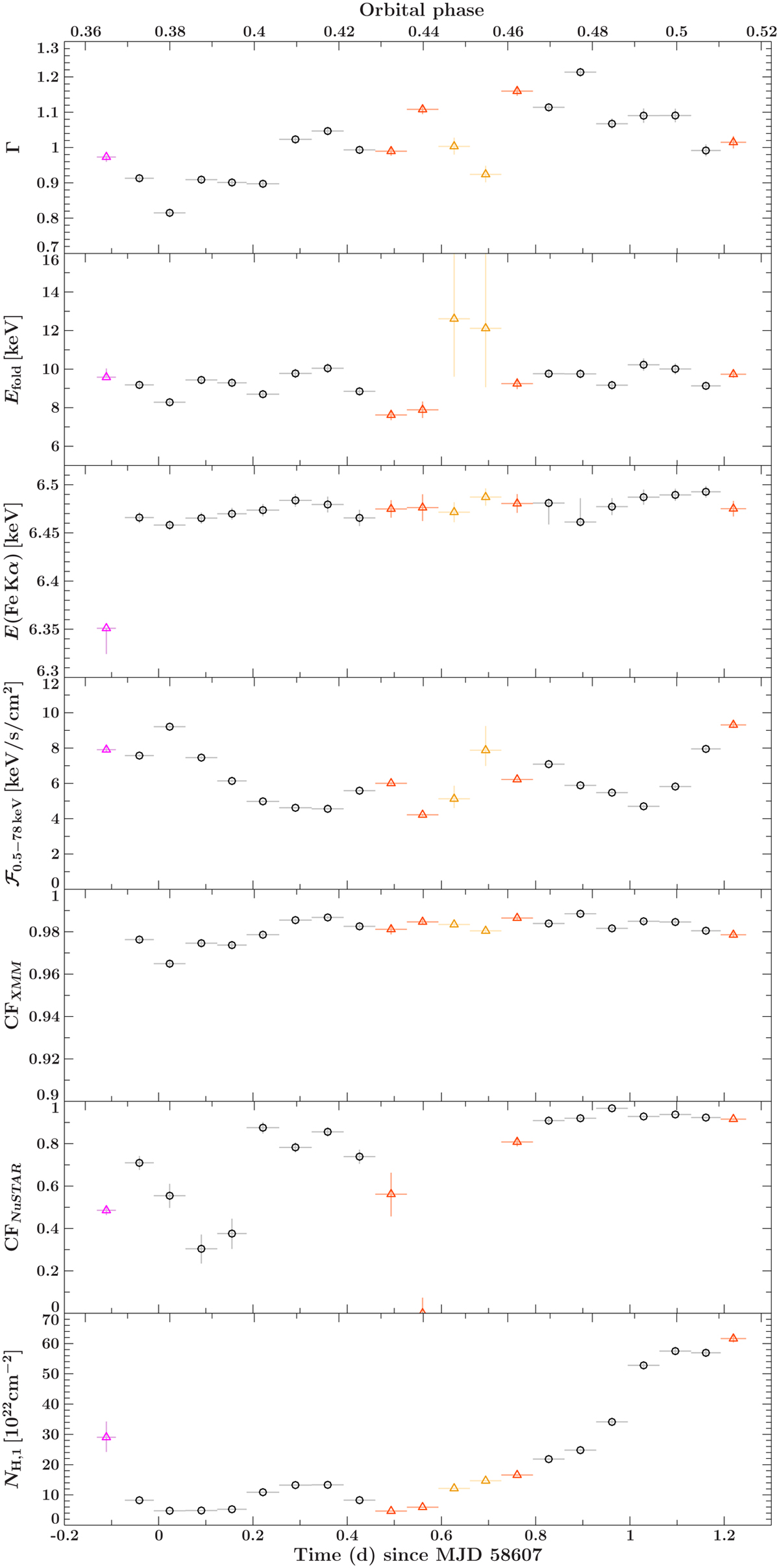

Results of the NuSTAR-orbit-by-orbit analysis with NuSTAR and XMM-Newton as a function of time, together with the corresponding binary orbital phase. From top to bottom: Photon index (Γ), folding energy (Efold) in keV, energy of the FeKα line in keV, unab-sorbed flux 0.5−78,keV in keV s−1 cm−2, CFs with NuSTAR (CFNuSTAR) and XMM-Newton EPIC-pn (CFXMN), absorption from the stellar wind NH,1 in 1022 cm−2. Circles show data fully covered by both XMM-Newton EPIC-pn and NuSTAR. Triangles show data missing coverage from one of the two instruments. Magenta marks the data only covered by NuSTAR (NuSTAR-orbit 1) and orange the data fully covered by one instrument but partially by the second one (NuSTAR-orbits 10, 11, 14 and 21). Finally, yellow is used to denote data only covered by XMM-Newton EPIC-pn (NuSTAR-orbits 12 and 13).
