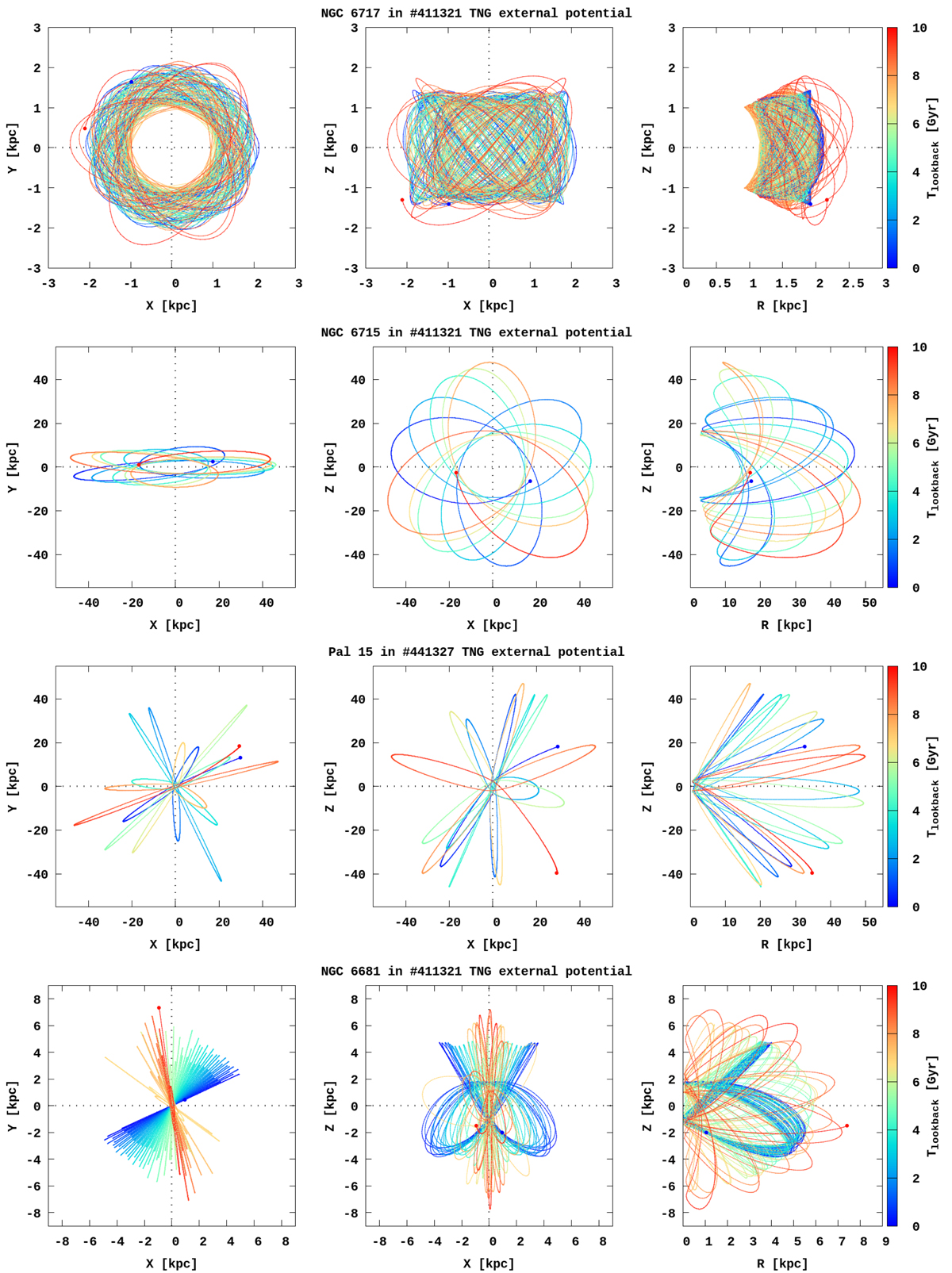

Fig. B.1.
Download original image
Examples of different orbit types in three coordinate planes (X, Y), (X, Z), and (R, Z), where R is the planar galactocentric radius. Tube orbit (TB) of NGC 6717, perpendicular tube orbit (PT) of NGC 6715, long radial orbit (LR) of Palomar 14, and irregular orbit (IR) of NGC 6681, from top to bottom. The colour shows the evolution up to 10 Gyr. The blue dot is the initial location, and the red dot is the final location.
