Fig. 15.

Download original image

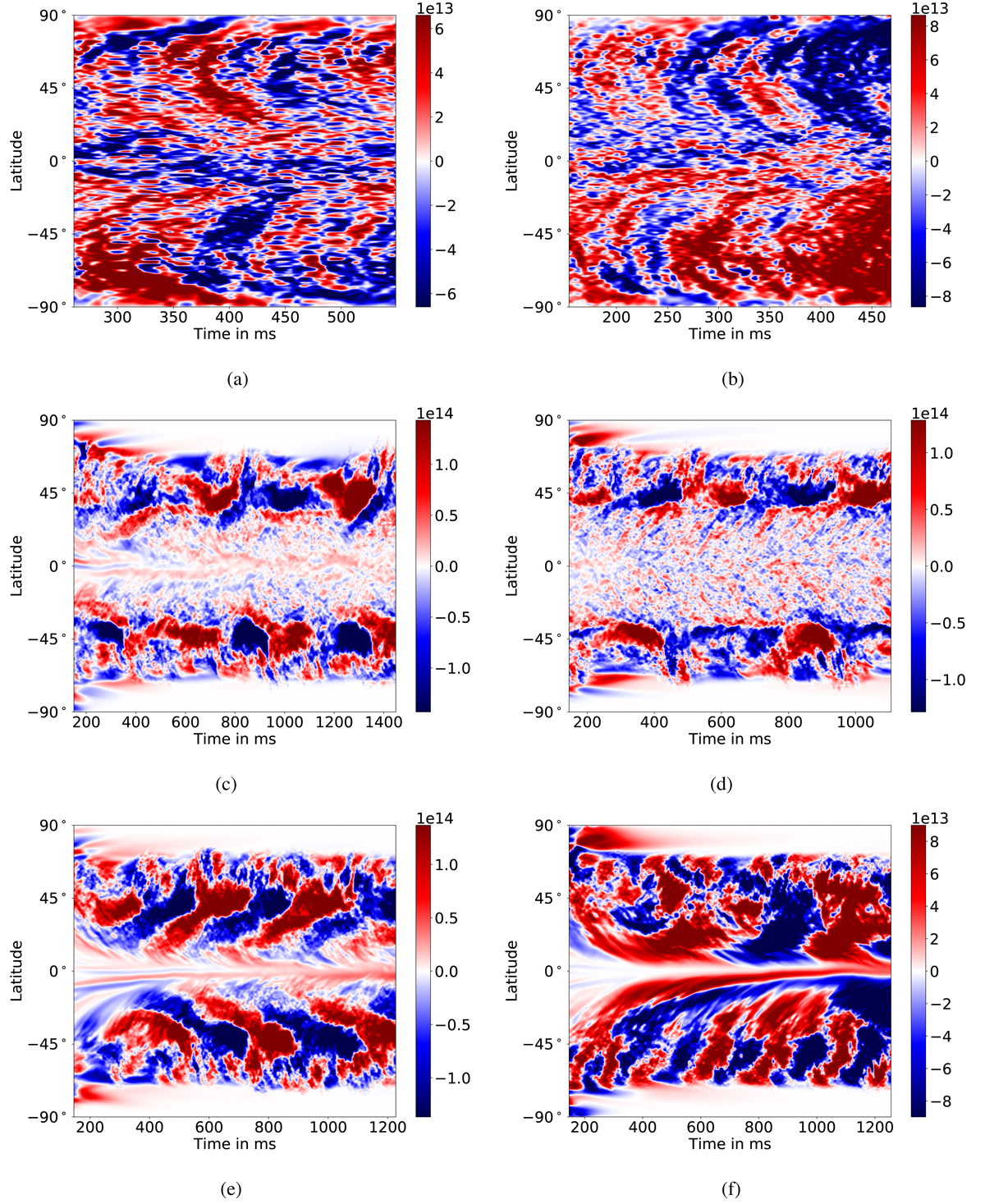

Butterfly diagrams of at r = 0.92 ro for the models shown in Fig. 12 for Boussinesq with buoyancy (panel a), Boussinesq without buoyancy (panel b), anelastic with buoyancy (panel c), anelastic without buoyancy (panel d), and anelastic with buoyancy with Pr = 0.02 (panel e) and Pr = 0.1 (panel f). Each butterfly diagram is computed at the same spherical radius r = 0.92 ro (in the turbulent region). (a) ∇ ⋅ u = 0, N2 > 0, Pr = 0.005. (b) ∇ ⋅ u = 0, N2 = 0, Pr = 0.005. (c)
, Pr = 0.005. (d)
, Pr = 0.005. (e)
, Pr = 0.02. (f)
, Pr = 0.1.
