Fig. C.1
Download original image

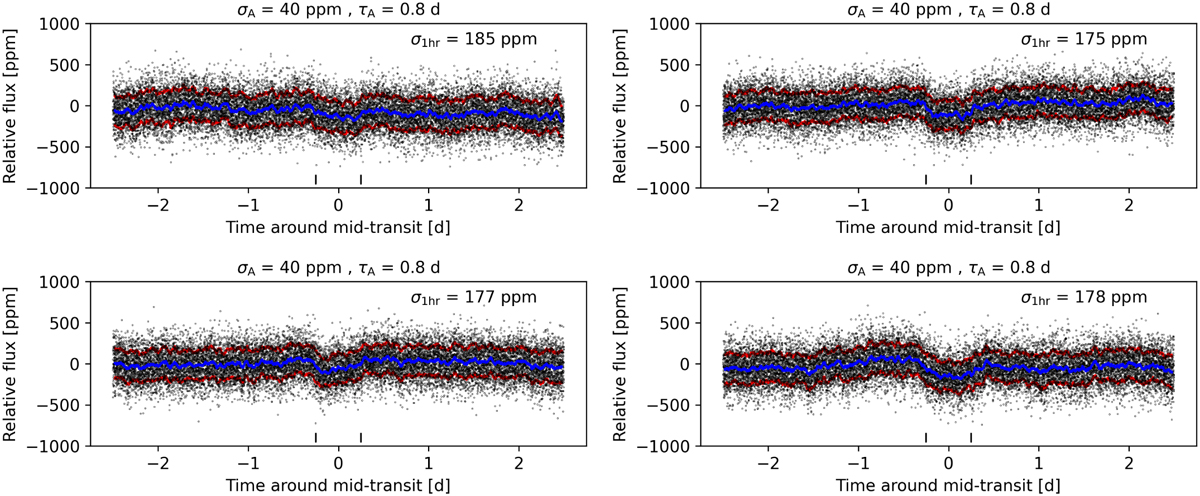

Four example light curves generated with PSLS with a transit of an Earth-like planet around a solar-sized star with weak photometric activity (σA = 40 ppm, τA = 0:8 d). The light curves assumed synchronous observations with 24 PLATO cameras and mV = 9. The duration of the transit is indicated with two vertical black bars spanning a window of 12 hr around the mid-transit time.
