Fig. 3

Download original image

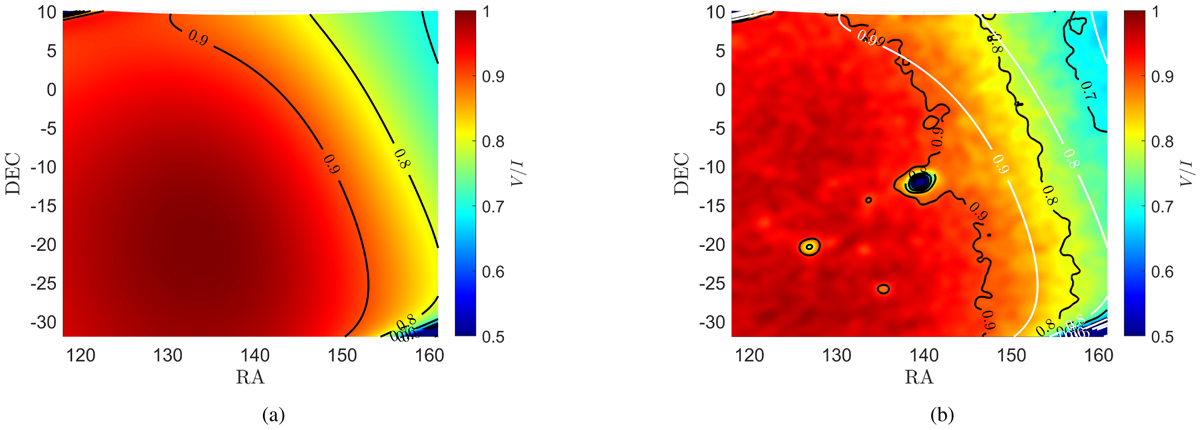

Side-by-side comparison of the ratio of the simulated and observed SEFDV/SEFDI at gridpoint 114. (a) Simulated image of SEFDV/SEFDI with the corresponding contours levels (black curves). (b) Observed SEFDV/SEFDI with the corresponding contours levels (black curves) and the contour levels of the simulated values (white curves). The observed image has a size of 4096 × 4096 pixels and was smoothed using a Gaussian filter of size 201 × 201 to smooth the noisy image.
