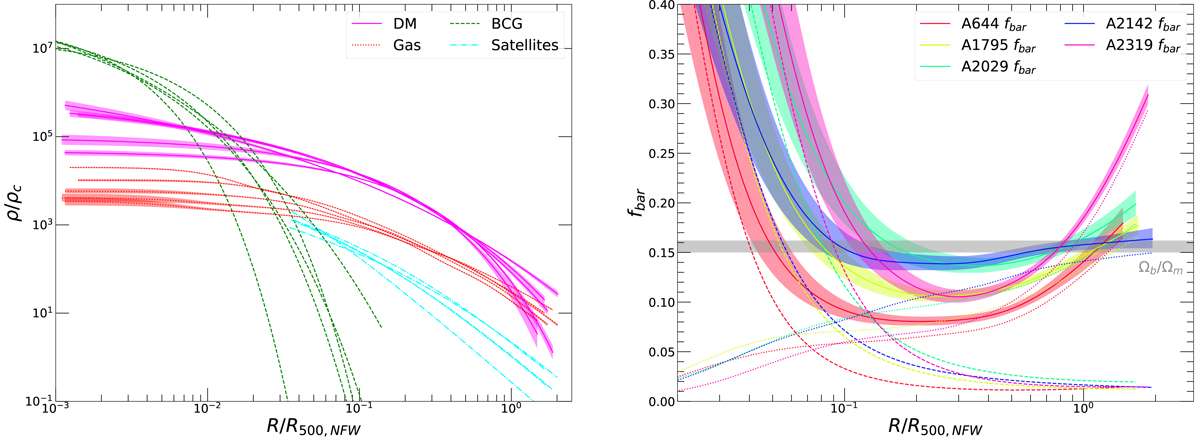

Fig. 6.

Download original image
Decomposition of the gravitational field into DM and baryonic components. Left: breakdown of the total differential density profile into baryonic and DM components for the five systems for which stellar mass profiles are available for both the BCG and the satellite galaxies. The baryonic components are split into the stellar mass (BCG, dashed green; satellites, dash-dotted cyan) and the gas mass (dashed red), whereas the fitted Einasto DM profiles are shown as the solid magenta curves. Right: total cumulative baryon fraction as a function of radius. The total baryon fraction and its uncertainty are shown as the solid curves and shaded areas, where the dashed and dotted lines show the relative contribution of gas and stars, respectively.
