Fig. 5.

Download original image

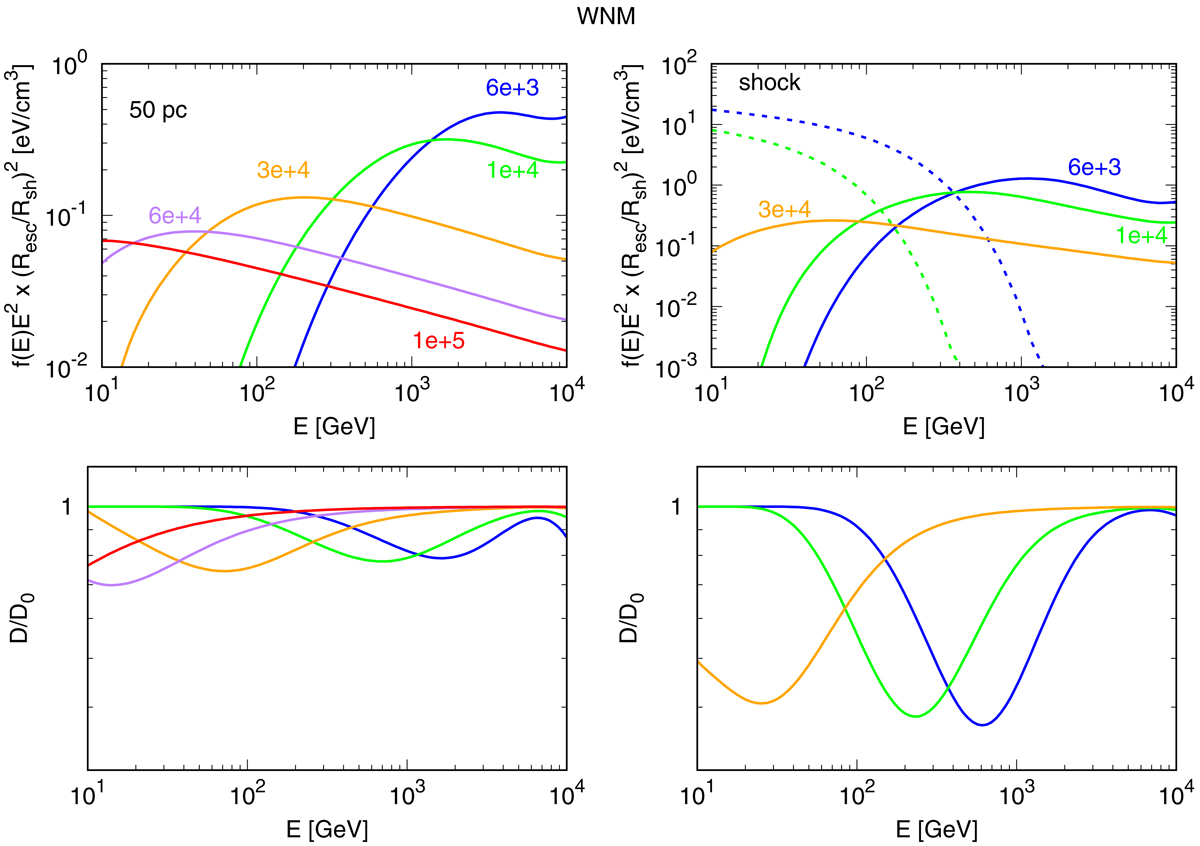

Case of WNM (f = 0.05, χ = 0.1): CR spectrum and ratio D/D0 as a function of energy, where D0(E) = 1028(E/10 GeV)0.5 cm2 s−1. The different colors refer to different ages in yr (as marked). Left panels: refer to a location at 50 pc from the center of the SNR, and right panels: refer to the shock position. In this case, the spectrum of CRs that are still confined in the accelerator is also shown (dashed lines).
