Fig. 8.

Download original image

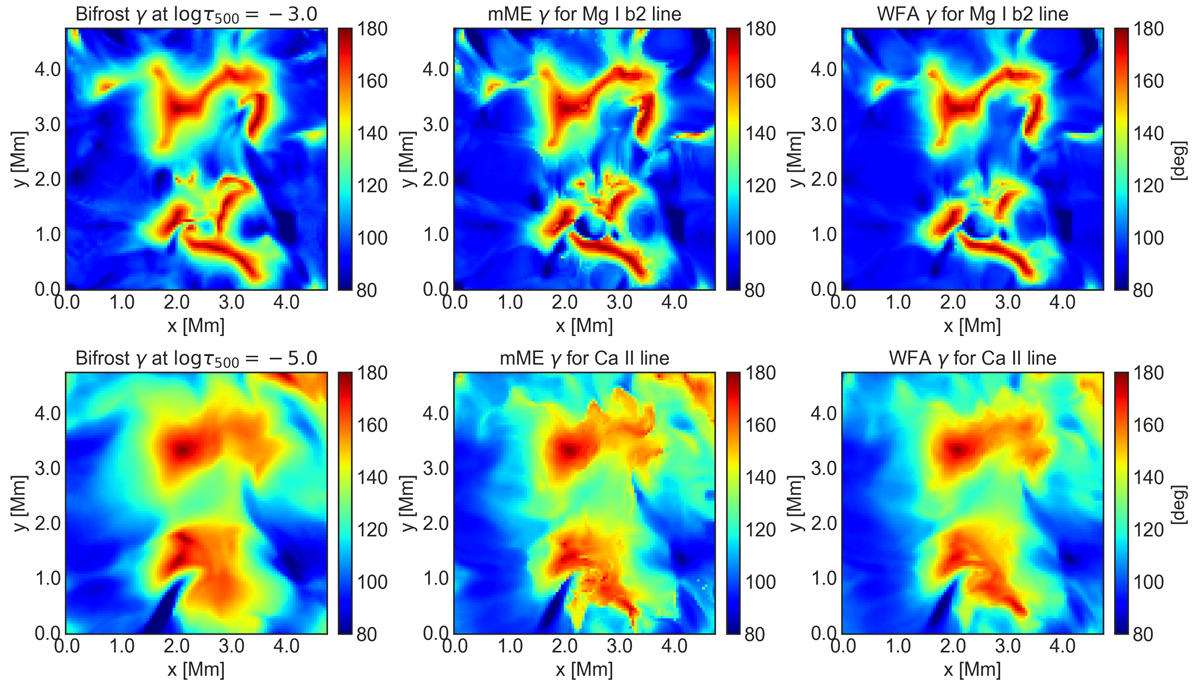

Magnetic field inclination (γ) maps of the region chosen for this study (in degrees). First row represents inclination corresponding to the Mg I b2 line. Left: Bifrost γ at Mg I b2 formation height; central: inverted γ using mME; right: inverted γ using WFA. Second row contains inclination maps corresponding to Ca II 854.2 line. Left: Bifrost γ at Ca II 854.2 formation height; central: inverted γ using mME; right: inverted γ using WFA. Formation heights have been estimated choosing those whose residuals were minimum with the mME inverted B.
