Fig. 12
Download original image

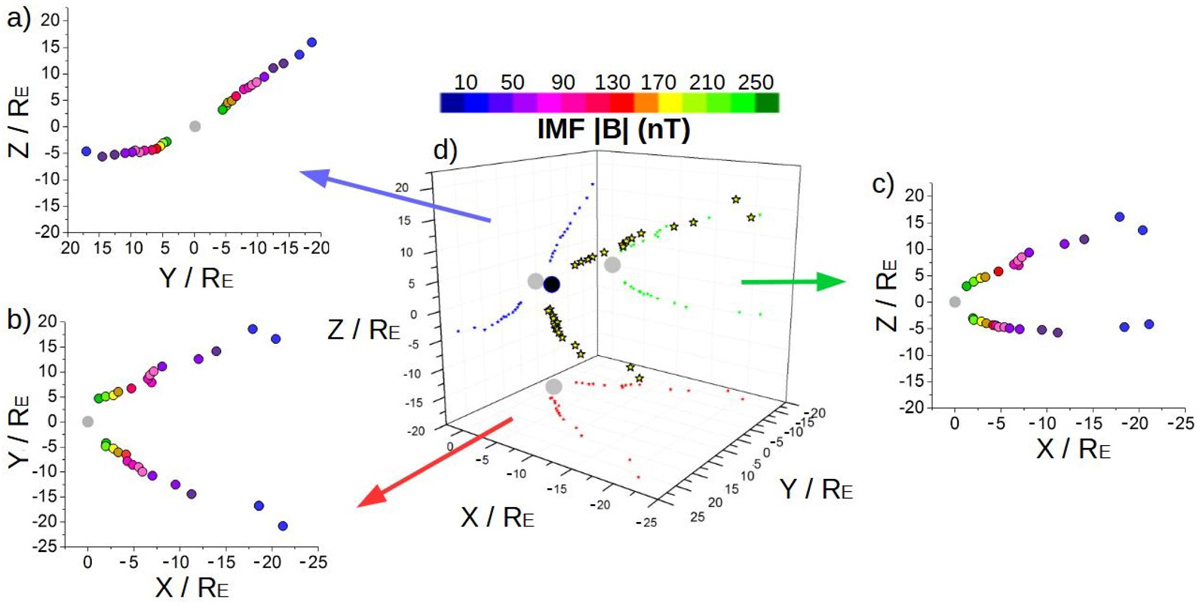

Location of the reconnection region if |BIMF| increases from 10 to 250 nT for an ecliptic ctr-clockwise IMF orientation. Pd = 1.2 nPa and T = 1.8 × 105 K. The color contour indicates the |BIMF| value. Panel a indicates the projection in the Y Z plane, (b) the projection in the XZ plane, and (c) the projection in the XY plane. Paneld shows the 3D view.
