Fig. 3.

Download original image

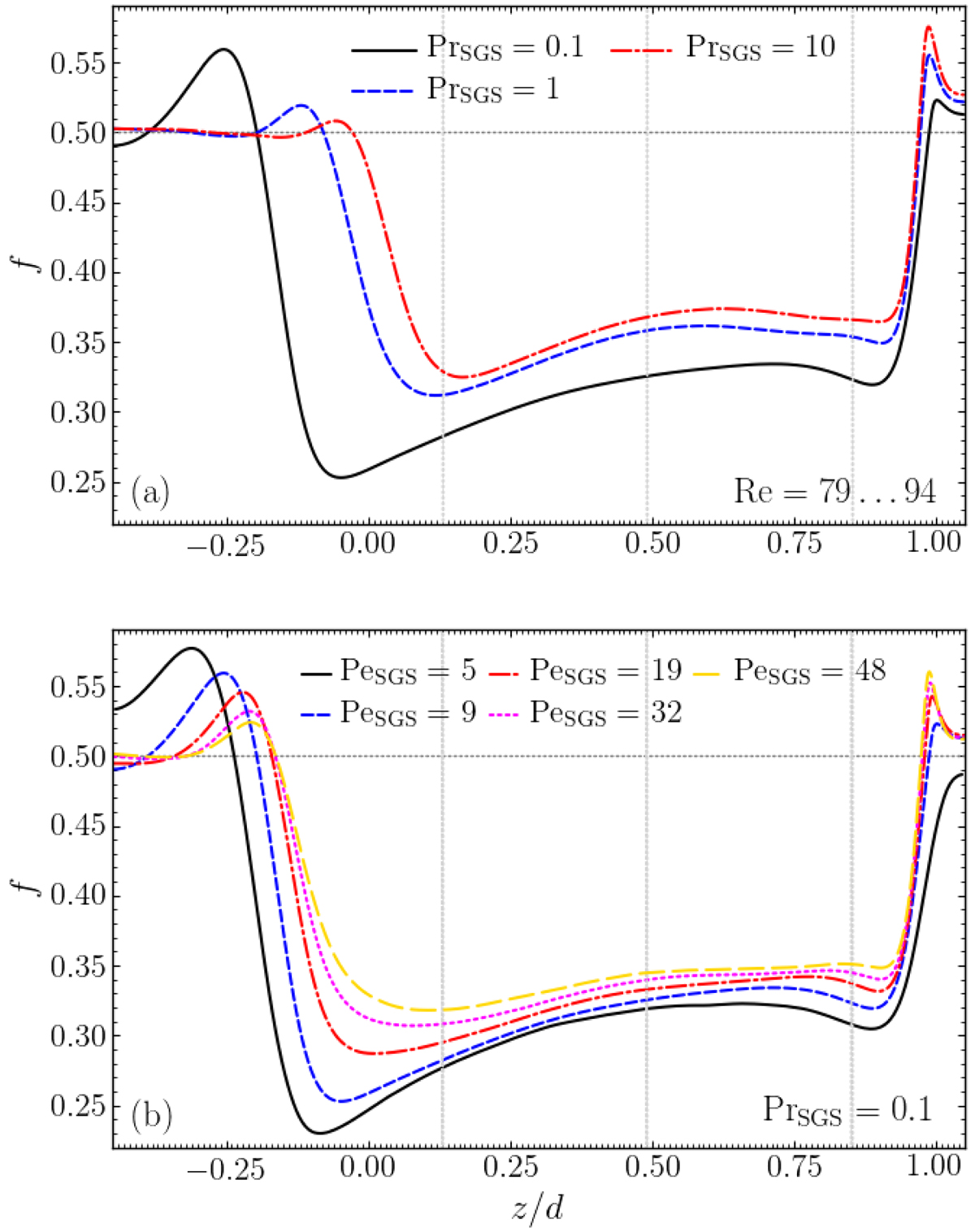

Filling factor of downflows for SGS Prandtl numbers 0.1 (solid line), 1 (dashed), and 10 (dash-dotted) as indicated by the legend from runs B01, B1, and B10 (a). Filling factor in runs with PrSGS = 0.1 with different PeSGS(b). The vertical dotted lines indicate the depths from which representative data for the top, middle, and bottom of the CZ are considered.
