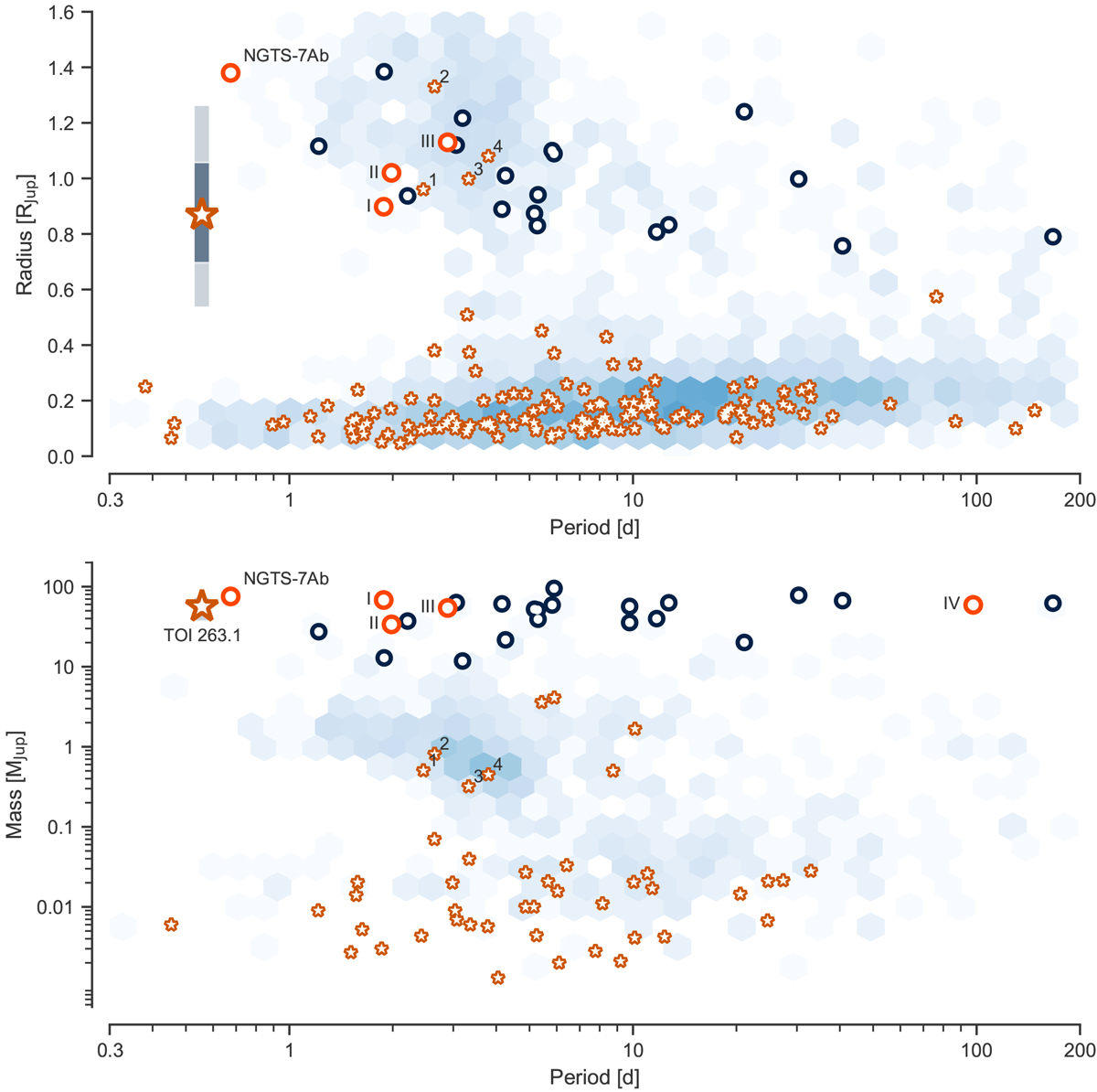

Fig. 7


Period–radius (top) and period–mass (bottom) diagrams of all the extrasolar planets and brown dwarfs that have been confirmed to date via transits or RVs2. The blue shaded scale indicates the density of known planets. All planets and brown dwarfs around host stars with Teff < 4000 K are individually marked with a red star or a red circle, respectively. Transiting brown dwarfs around other stellar types are marked with black circles. The position of TOI-263 b is marked with a larger red star, together with the radius and mass measurement uncertainties (within the symbol size in the latter case). For comparison, we also show the transiting brown dwarf NGTS-7Ab, which is marked separately, some individual planets, marked with Latin numbers – Kepler-45 (0), NGTS-1 (1), HATS-6 (2), and HATS-71A (3) – and known brown dwarfs, marked with Roman numerals – LP 261-75b (I), AD 3116 b (II), NLTT 41 135 b (III), and RIK 72 b (IV).
