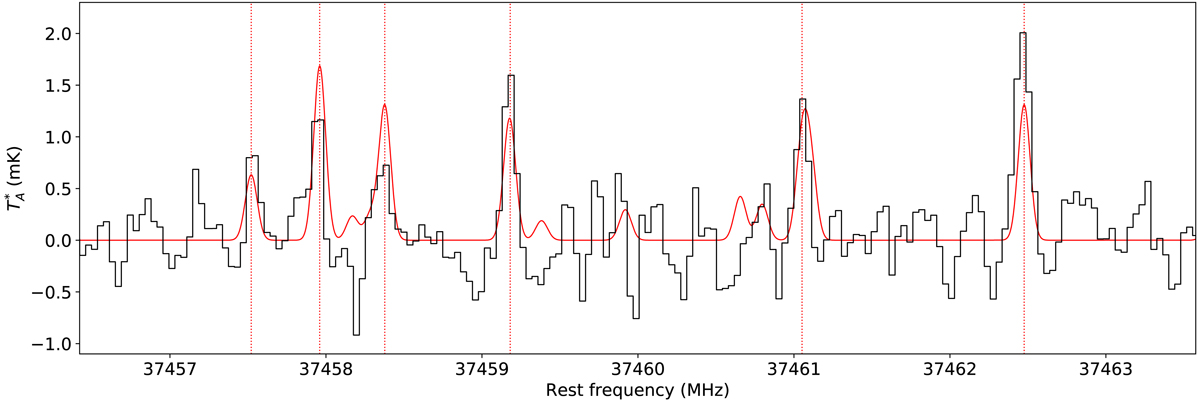

Fig. 1.

Spectrum of TMC-1 taken with the Yebes 40 m telescope around 37.46 GHz (black histogram). The frequencies of the six most intense hyperfine components of the 20, 2–10, 1 transition of ortho CH2CCH are indicated by red dotted vertical lines. Transition quantum numbers, frequencies, and derived line parameters are given in Table 1. The synthetic spectrum (red line) was computed for a column density of ortho CH2CCH of 6.5 × 1013 cm−2, a rotational temperature of 10 K, an emission size of 40″ of radius, and a linewidth of 0.72 km s−1 (see main text).
